Brand Name : | SUNWIN |
Model Number : | LV XLPE Power Cable |
Certification : | IEC60502-2 VDE 0276-620 AS/NZS1429.1 ICEA S93-639 ICEA S94-649 |
Price : | Negotiable |
Payment Terms : | 30% deposit, the balance is settled on the delivery date |
Supply Ability : | 100,000 m / month |
Delivery Time : | 10 day |
LV PVC Power Cable,Low Voltage PVC Insulated PVC Sheathed Power Cable
LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Low Voltage PVC Insulated PVC Sheathed Power Cable.
Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for
distribution line with A.C.50HZ and rated voltage up to 1kV. With
the characteristics of stable capability, advanced technology,
broad material resources, low price, good flexible and easy to lay
and maintain.
Property:
1.The long-term permissible operation temperature of the conductor
shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature
shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and
the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis,
grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and
maintained easily and conveniently.

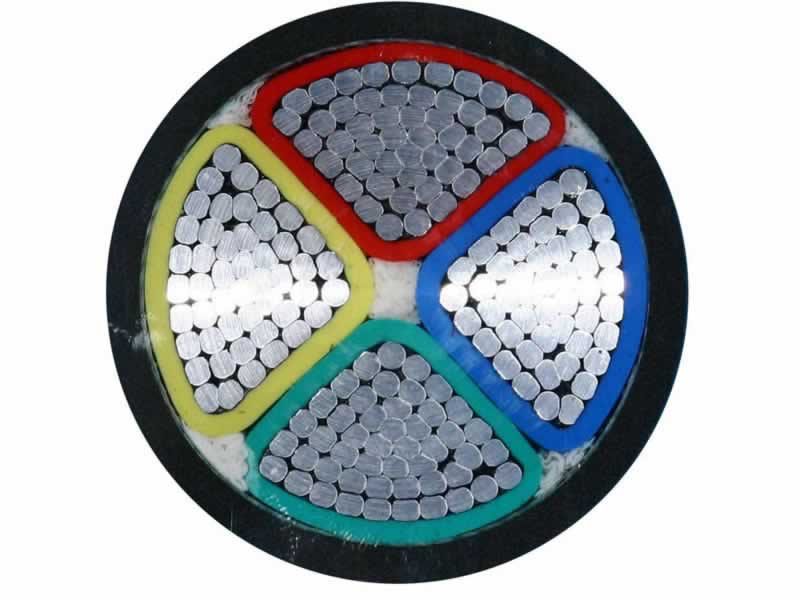

Construction:
0.6/1kV Single Core or Multi Cores, Circular Compacted Al or
Cu/PVC/PVC armoured or Un-Armoured Power Cable.
0.6/1kV PVC Insulated Power Cable | Conductor | Insulation | Armor | Outer Sheath | |||||
Aluminum | Copper | PVC | SW | ST | DST | AW | PVC | PE | |
Cu/PVC/PVC | P | P | --- | --- | --- | --- | P | ||
Cu/PVC/PE | P | P | --- | --- | --- | --- | P | ||
Al/PVC/PVC | P | P | --- | --- | --- | --- | P | ||
Al/PVC/PE | P | P | --- | --- | --- | --- | P | ||
Cu/PVC/STA/PVC | P | P | --- | P | --- | --- | P | ||
Cu/PVC/STA/PE | P | P | --- | P | --- | --- | P | ||
Al/PVC/STA/PVC | P | P | --- | P | --- | --- | P | ||
Al/PVC/STA/PE | P | P | --- | P | --- | --- | P | ||
Cu/PVC/DSTA/PVC | P | P | --- | --- | P | --- | P | ||
Cu/PVC/DSTA/PE | P | P | --- | --- | P | --- | P | ||
Al/PVC/DSTA/PVC | P | P | --- | --- | P | --- | P | ||
Al/PVC/DSTA/PE | P | P | --- | --- | P | --- | P | ||
Cu/PVC/SWA/PVC | P | P | P | --- | --- | --- | P | ||
Cu/PVC/SWA/PE | P | P | P | --- | --- | --- | P | ||
Al/PVC/SWA/PVC | P | P | P | --- | --- | --- | P | ||
Al/PVC/SWA/PE | P | P | P | --- | --- | --- | P | ||
Cu/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
Cu/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
Al/PVC/AWA/PVC | P | P | --- | --- | --- | P | P | ||
Al/PVC/AWA/PE | P | P | --- | --- | --- | P | P | ||
Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire |
It shows us the most common sizes of conductor, but other sizes to
any recognized standards or customer specification can also be
supplied as per customer's requirements.
Low Voltage PVC Power Cable Voltage rating | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
single core | two cores | three cores | 3+1 cores | Four cores | 3+2 cores | 4+1 cores | 5 core | |
0.6/1 kV | 1x4 mm2 | 2x4 mm2 | 3x4 mm2 | 3x4 mm2 + 1x2.5mm2 | 4x4 mm2 | 3x4 mm2 + 2x2.5mm2 | 4x4 mm2 + 1x2.5mm2 | 5x2.5 mm2 |
1x6 mm2 | 2x6 mm2 | 3x6 mm2 | 3x6 mm2 + 1x4 mm2 | 4x6 mm2 | 3x6 mm2 + 2x4 mm2 | 4x6 mm2 + 1x4 mm2 | 5x4 mm2 | |
1x10 mm2 | 2x10 mm2 | 3x10 mm2 | 3x10 mm2 + 1x6 mm2 | 4x10 mm2 | 3x10 mm2 + 2x6 mm2 | 4x10 mm2 + 1x6 mm2 | 5x6 mm2 | |
1x16 mm2 | 2x16 mm2 | 3x16mm2 | 3x16 mm2 + 1x10 mm2 | 4x16 mm2 | 3x16 mm2 + 2x10 mm2 | 4x16 mm2 + 1x10 mm2 | 5x10 mm2 | |
1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3x25 mm2 + 1x16mm2 | 4x25 mm2 | 3x25 mm2 + 2x16mm2 | 4x25 mm2 + 1x16mm2 | 5x16 mm2 | |
1x35 mm2 | 2x35 mm2 | 3x 35 mm2 | 3x35 mm2 + 1x16mm2 | 4x35 mm2 | 3x35 mm2 + 2x16mm2 | 4x35 mm2 + 1x16mm2 | 5x25 mm2 | |
1x50 mm2 | 2x50 mm2 | 3x 50 mm2 | 3x50 mm2 + 1x25mm2 | 4x50 mm2 | 3x50 mm2 + 2x25mm2 | 4x50 mm2 + 1x25mm2 | 5x35 mm2 | |
1x70 mm2 | 2x70 mm2 | 3x 70 mm2 | 3x70 mm2 + 1x35mm2 | 4x70 mm2 | 3x70 mm2 + 2x35mm2 | 4x70 mm2 + 1x35mm2 | 5x50 mm2 | |
1x95 mm2 | 2x95 mm2 | 3x 95 mm2 | 3x95 mm2 + 1x50mm2 | 4x95 mm2 | 3x95 mm2 + 2x50mm2 | 4x95 mm2 + 1x50mm2 | 5x70 mm2 | |
1x120 mm2 | 2x120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4x120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5x95 mm2 | |
1x150 mm2 | 2x150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4x150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
1x185 mm2 | 2x185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4x185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
1x240 mm2 | 2x240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4x240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | ||
1x300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4x300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
1x400 mm2 | ||||||||
1x500 mm2 | ||||||||
1x630 mm2 |
![]() |
