    ZH H07Z-K Low Smoke Zero Halogen Power Cable For Hospitals Schools Airport

    ZH H07Z-K Low Smoke Zero Halogen Power Cable For Hospitals Schools Airport


    Flexible and halogen free (LSZH) power cable for public places.

    ZH H07Z-K is a flexible cable for fixed and protected installations. It is highly recommended for use in public places such as: hospitals, schools, museums, airports, bus terminals, shopping malls, offices, laboratories, etc. Not suitable for wet places or immersed.

    ZH H07Z-K cable performance


    Electrical performance

    LOW VOLTAGE 450/750V


    Standard

    EN 50525-3-41


    Approvals

    CE

    HAR

    AENOR


    Construction Product Regulation

    Eca


    Thermal performance

    Maximum service temperature: 90ºC.

    Maximum short-circuit temperature: 250ºC (max. 5 s).

    Minimum service temperature: -40ºC (fixed and protected installations).


    Fire performance

    Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

    LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.

    Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%

    Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.

    Reaction to fire CPR Eca.


    Mechanical performance

    Minimum bending radius: x5 cable diameter.


    Chemical performance

    Chemical & Oil resistance: Acceptable.


    Water performance

    Water resistance: AD3 Sprays.


    Other

    Meter by meter marking.


    Installation conditions

    In conduit.


    Applications

    Domestic use.

    Electric panel wiring.

    Public places.


    TOXFREE ZH H07Z-K cable design

    Conductor

    Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

    Insulation

    LSZH Rubber.

    The standard identification of insulated conductors is the following:

    Blue RAL 5015

    Brown RAL 8003

    Black RAL 9005

    Red RAL 3000

    Green/yellow RAL 1021 / RAL 6018

    Gray RAL 7000

    Other colours available on request.

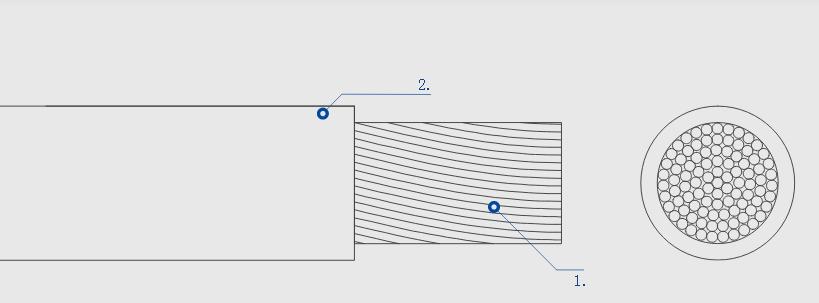

    Technology


    1. Conductor

    Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

    2. Insulation

    LSZH Rubber.

    The standard identification of insulated conductors is the following:

    Blue RAL 5015

    Brown RAL 8003

    Black RAL 9005

    Red RAL 3000

    Green/yellow RAL 1021 / RAL 6018

    Grey RAL 7000
