0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation

    Buy cheap 0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation from wholesalers

    Buy cheap 0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation from wholesalers
    • Buy cheap 0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation from wholesalers

    0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation

    0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation


    POWERFLEX Plus YMvKf XV-F2 cable is suitable for all types of industrial low voltage connections, urban grids, building installations, etc. This cable is fire retardant and is recommended for use in public places and hazardous industries. Its flexibility makes installation substantially easier, making it highly suitable for difficult layouts. This cable can also be used in buried installations or in tubes or outdoors without requiring additional protection. This cable withstands damp conditions and even total submersion in water (AD7).

    POWERFLEX PLUS YMvKf XV-F2 cable performance

    Electrical performance

    LOW VOLTAGE 0,6/1kV


    Standard

    HD 604-4-D / IEC 60502-1


    Approvals

    CE

    KEMA KEUR

    RoHS


    Construction Product Regulation

    Cca-s3, d2, a3


    Thermal performance

    Maximum service temperature: 90ºC.

    Maximum short-circuit temperature: 250ºC (max. 5 s).

    Minimum service temperature: -40ºC (fixed and protected installations).


    Fire performance

    Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

    Fire non-propagation based on UNE-EN 60332-3 and IEC 60332-3.

    Reduced emission of halogens. Chlorine <15%.

    Reaction to fire CPR: Cca -s3,d2,a3, according to EN 50575.

    Mechanical performance

    Minimum bending radius: x5 cable diameter.

    Impact resistance: AG2 Medium severity.


    Chemical performance

    Chemical & Oil resistance: Acceptable.


    Water performance

    Water resistance: AD7 Immersion.


    Other

    Meter by meter marking.


    Installation conditions

    Open Air.

    Buried.

    In conduit.


    Applications

    Industrial use.

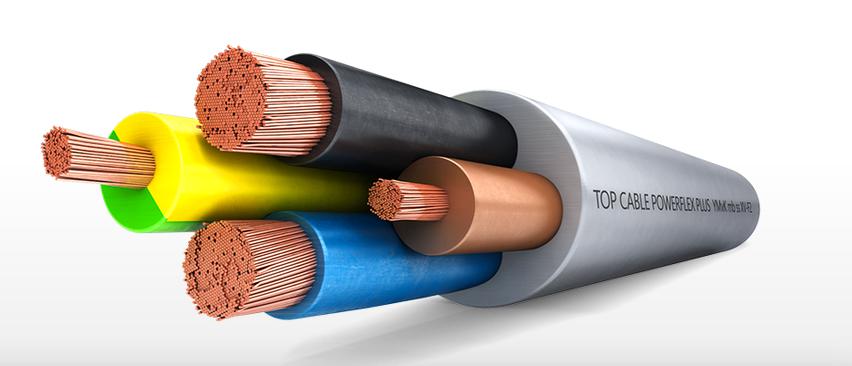

    POWERFLEX PLUS YMvKf XV-F2 cable design

    Conductor

    Electrolytic copper, class 2 (flexible) based on IEC 60228 and IEC 60228.

    Flexibility equivalent to Class 5.


    Insulation

    Cross-linked polyethylene (XLPE)

    The standard identification of insulated conductors is the following:

    1 x Black

    2 x Blue + Brown

    3 G Blue + brown + green + yellow

    4 x Black + brown + grey + Green/yellow

    5 G Brown + Black + Grey + Blue + Green/yellow


    Outer sheath

    Flexible PVC, grey colour.


    Technology


    1. Conductor

    Electrolytic copper, class 2 (flexible) based on IEC 60228 and IEC 60228. Flexibility equivalent to Class 5.

    2. Insulation

    Cross-linked polyethylene (XLPE)

    The standard identification of insulated conductors is the following:

    1 x Black

    2 x Blue + Brown

    3 G Blue + brown + green + yellow

    4 x Black + brown + grey + green/yellow

    5 G Brown + Black + Grey + Blue + Yellow/green

    3. Outer sheath

    Flexible PVC, grey colour.


    Quality 0.6/1KV 3 Core Low Voltage Cable Portable Power Cable For Fixed Installation for sale
