High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant

    Buy cheap High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant from wholesalers

    Buy cheap High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant from wholesalers
    • Buy cheap High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant from wholesalers

    High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant

    High Performance Multi Core Copper Cable 8 Core PVC Copper Wire Oil Resistant


    FLEXTEL 140 H05VV5-F is a cable for signalling and control systems. It is especially suitable for connecting industrial equipment and machine tools. Due to its properties, it is recommended for robotics and light mobile services. Its special vinilic outer sheath compound is particularly resistant to mineral oils and other chemical agents. It can be installed in either dry or humid environments.

    FLEXTEL 140 H05VV5-F cable performance

    Electrical performance


    LOW VOLTAGE 300/500 V


    Standard

    EN 50525-2-51


    Approvals

    CE

    HAR

    AENOR

    SASO

    RoHS



    Construction Product Regulation

    Eca


    Thermal performance

    Maximum service temperature: 60ºC.

    Maximum short-circuit temperature: 150ºC (max. 5 s).

    Minimum service temperature: 5ºC.


    Fire performance

    Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.


    Mechanical performance

    Minimum bending radius: 3 x cable Ø (up to 12 mm2).

    4 x cable Ø (12 mm2 onwards).

    Impact resistance: AG2 Medium severity.


    Chemical performance

    Chemical & Oil resistance: Excellent.

    Grease & mineral oils resistance: Good.


    Water performance

    Water resistance: AD5 Jets.


    Other

    Meter by meter marking.


    Installation conditions

    Open Air.

    In conduit.


    Applications

    Industrial use.

    Mobile use.

    Robotics.

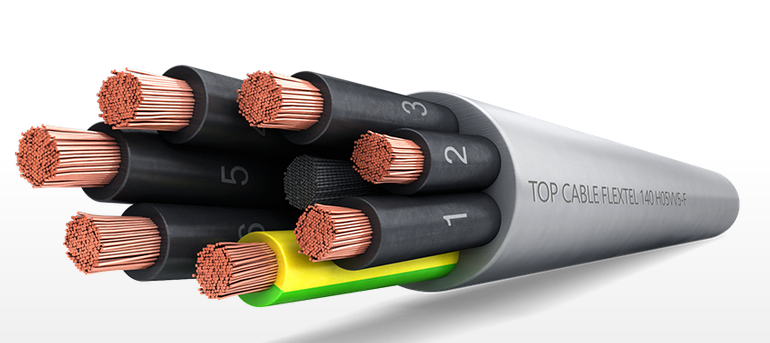

    FLEXTEL 140 H05VV5-F cable design

    Conductor

    Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.


    Insulation

    Flexible PVC.

    The standard identification of insulated conductors is the following:

    2 x Black numbered

    3 or more conductors Black numbered + Green/yellow


    Outer sheath

    Flexible PVC oil resistant outer sheath, grey colour.


    Technology

    • 1. Conductor
      • Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.
    • 2. Insulation
      • Flexible PVC.
      • The standard identification of insulated conductors is the following:
      • 2 x Black numbered
      • 3 or more conductors Black numbered+ Yellow/green
    • 3. Outer sheath
      • Flexible PVC oil resistant outer sheath, grey colour.
