    BS EN 50288 Low Smoke Zero Halogen Cable For Telecoms Equipment DC Power Supplies

    BS EN 50288 Low Smoke Zero Halogen Cable For Telecoms Equipment DC Power Supplies


    Low Smoke Zero Halogen Cable Application


    Flexible single core insulated and sheathed LSZH cable. Suitable for DC power supplies on Telecoms equipment and power applications where flexibility is required. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.


    Cable Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Low Smoke Zero Halogen Cable Construction


    Conductor
    Class 5 flexible annealed copper conductor

    Insulation
    XLPE (Cross-Linked Polyethylene)

    Sheath
    LSZH (Low Smoke Zero Halogen)


    Low Smoke Zero Halogen Cable Characteristics


    Voltage Rating (Uo/U)
    Up to 35mm2: 450/750V
    50mm2 and above: 600/1000V

    Temperature Rating
    Fixed: 0°C to +90°C

    Minimum Bending Radius
    Up to 50mm2: 3 x overall diameter
    70mm2 and above: 4 x overall diameter

    Sheath Colour (Insulation Colour)
    Blue (Blue), Grey (Grey), Green/Yellow, (Green/Yellow)
    Special colours to order

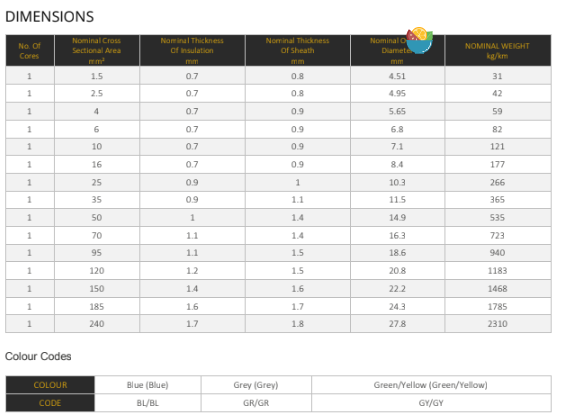

    Size, Weight & Electrical Specification
