    IEC 60502-1 Low Smoke Zero Halogen Cable Cross Linked Polyethylene Insulation

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    IEC 60502-1 Low Smoke Zero Halogen Cable Cross Linked Polyethylene Insulation

    IEC 60502-1 Low Smoke Zero Halogen Cable Cross-Linked Polyethylene Insulation


    Low Smoke Zero Halogen Cable Application


    These power cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fixed on cable trays, within conduits or fixed to walls.


    Low Smoke Zero Halogen Cable Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Low Smoke Zero Halogen Cable Construction


    Conductor
    Up to 16mm2: Class 1 solid copper conductor
    Above 16mm2: Class 2 stranded copper conductor

    Insulation
    XLPE (Cross-Linked Polyethylene) according to VDE 0276 Part 604

    Sheath
    LSZH (Low Smoke Zero Halogen) Type HM4 according to VDE 0276 Part 604


    Characteristics

    Voltage Rating (Uo/U)
    600/1000V

    Temperature Rating
    Fixed: -20°C to +90°C

    Minimum Bending Radius
    12 x overall diameter

    Sheath Colour
    Black

    Core Identification
    1 core: Black
    2 core: Blue, Brown
    3 core: Brown, Black, Grey
    3 core including earth: Brown, Blue, Green/Yellow
    4 core: Blue, Brown, Black, Grey
    4 core including earth: Green/Yellow, Brown, Black, Grey
    5 core: Blue, Brown, Black, Grey, Black
    5 core including earth: Green/Yellow, Blue, Brown, Black, Grey

    I am text block. Click edit button to change this text. Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

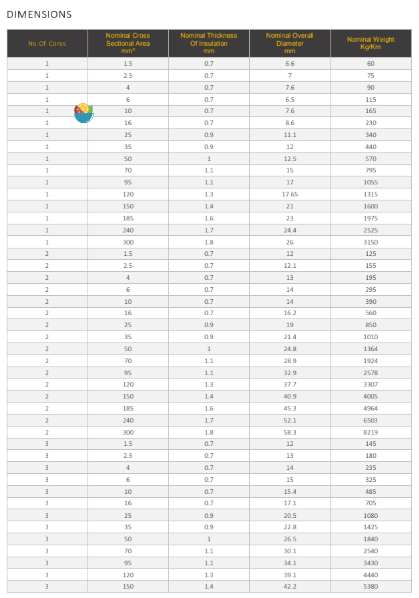

    Size, Weight & Electrical Specification
