    Orange Sheath LSZH Flexible Cables , Electrical Low Smoke Zero Halogen Wire

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Orange Sheath LSZH Flexible Cables , Electrical Low Smoke Zero Halogen Wire

    Orange Sheath LSZH Flexible Cables , Electrical Low Smoke Zero Halogen Wire


    LSZH Flexible Cables Application


    Safety cables are used in all locations where a high degree of protection against fire and fire damage has to be provided for human life and equipment and are, therefore, subject to high security requirements. These cables may be used indoors and outdoors. They may not be installed directly into the ground or into water. Fire resistant to FE 180 and Circuit Integrity to E 30.


    LSZH Flexible Cables Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

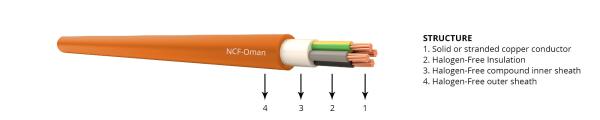

    LSZH Flexible Cables Construction


    Conductor
    Solid or stranded copper conductor
    Class 1 solid copper conductor
    Class 2 stranded copper conductor

    Insulation
    Halogen-free, similar ceramic polymer Type HXI 1

    Inner Sheath
    Halogen-free compound

    Outer Sheath
    Halogen-free polymer Type HM 4


    LSZH Flexible Cables Characteristics


    Voltage Rating (Uo/U)
    600/1000V

    Test Voltage
    4000V AC

    Temperature Rating
    -5°C to +90°C

    Operating Temperature
    +250°C

    Short Circuit Time
    5 sec.

    Minimum Bending Radius
    12 x overall diameter
    15 x overall diameter

    Outer Sheath Colour
    Orange


    Size, Weight & Electrical Specification
