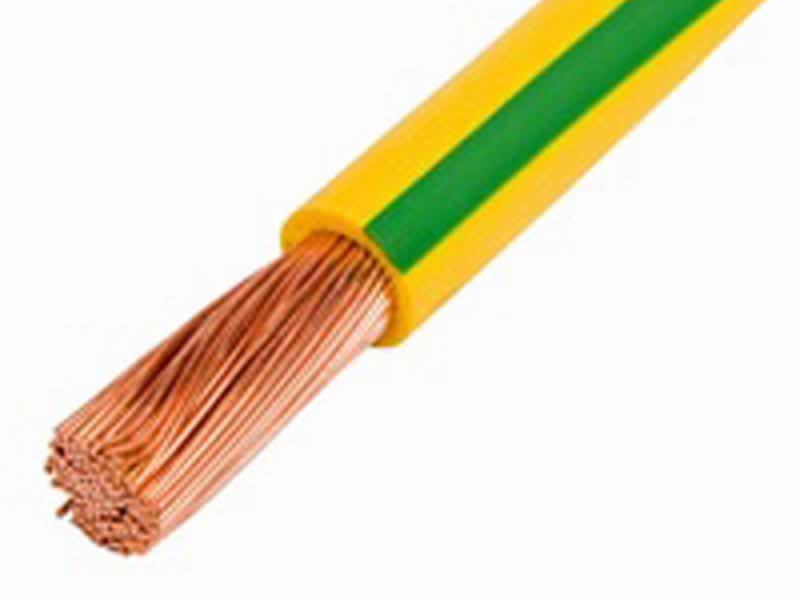

    Flexible PVC Insulated Electrical Wire Single Core Copper Conductor

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : PVC Insulated Flexible Cable
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

    Flexible PVC Insulated Electrical Wire Single Core Copper Conductor

    2491X,Single Core Copper Conductor PVC Insulated Flexible Cable


    2491X (Single Core Copper Conductor PVC Insulated Flexible Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

    2491X (H05V-K / H07V-K) Cable Standards :

    BS6004:2000; Harmonised Type H05V-K (Sizes 0.5mm - 1.0mm) H07V-K (Sizes 1.5mm upwards)


    Application:


    2491X cable is a Flexible PVC cable used for switch control in relay and instrumentation panels of power switchgear and is used for purposes such as internal connectors in rectifier equipment, motor starters and controllers.


    Construction:


    Conductor: Flexible class 5 copper conductors to BS6360

    Insulation: PVC

    Temperature Rating: 70°C

    Voltage Rating: H05V-K for 300V ac and 500V dc; H07V-K for 450V ac and 750V dc

    Minimum Bending Radius : 6 x overall diameter.

    Colour : Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink.

    Packaging - 100, 500, 1,000 metre reels. Barrels and other lengths available upon request.

    Single Core Copper Conductor PVC Insulated Flexible Cable,2491X specifications(data sheet,table,full form)
