    Aluminium Underground Insulated Electrical Wire PVC Jacket Four Core

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : Insulated Electrical Wire
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

    Aluminium Underground Insulated Electrical Wire PVC Jacket Four Core

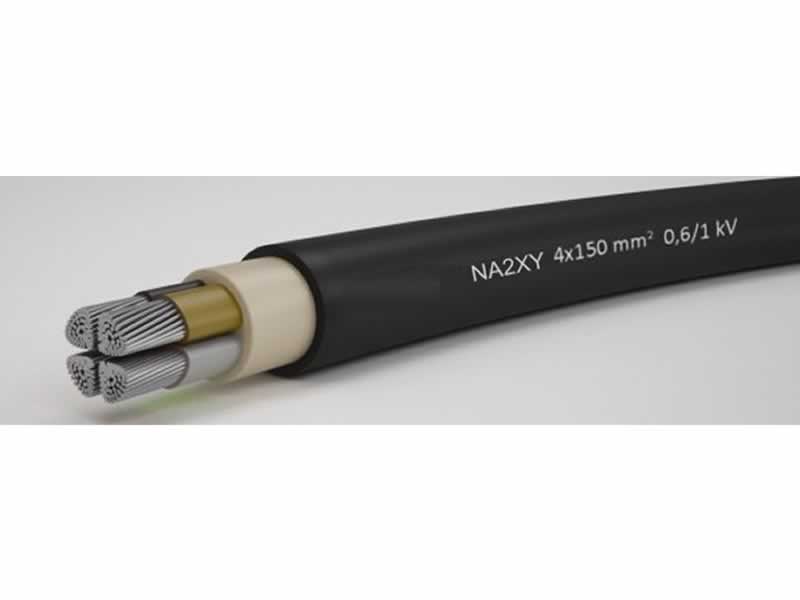

    NA2XY,0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables

    NA2XY (0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

    Application:
    Kabel NA2XY is widely used In ground, outdoors. in concrete, indoors and in cable ducts where no mechanical damage is to be expected

    NA2XY Cable Construction:
    Conductor of solid aluminium wires - insulation of cross-linked polyethylene (XLPE) -extruded or lapped inner covering - PVC sheath.

    Conductor materialAluminum
    InsulationXLPE (chemical)
    Outer sheathPVC
    Rated Voltage Uo/U (Um)0.6/1 kV
    Frequence50Hz
    Max. system voltage, 1-phase grounded0.7kV
    Max. system voltage: 1 phase both phases grounded (Um)1.4kV
    Max. system voltage 3 phases (Um)1.2kV
    Max. conductor temperature in service90°C
    Minimum installation temperature-5°C
    Short-circuit max. conductor temperature250°C


    NA2XY Technical Parameter:

    No. of cores
    x nom. cross
    section
    max.
    conductor
    resistance
    current
    rating
    in the ground
    current
    rating
    in the air 1)
    outer
    diameter
    AL-
    number
    total
    weight

    mm²

    Ohm/km

    A

    A
    appr.
    mm
    appr.
    kg/km
    appr.
    kg/km
    1 × 25 RE1.20017713611,573191
    1 × 35 RE0.86821216612,5102231
    1 × 50 RM0.64125220514,5145292
    1 × 70 RM0.44331026016,3203390
    1 × 95 RM0.32037232118,1276480
    1 × 120 RM0.25342537619,8348556
    1 × 150 RM0.20647643121,5435675
    1 × 185 RM0.16454150123,8537830
    1 × 240 RM0.12563160026,36961.059
    1 × 300 RM0.10071669629,08701.260
    1 × 400 RM0.07882582131,81.1601.560
    1 × 500 RM0.06195297136,51.4501.949
    1 x 630 RM*0.0471.1021.15141,91.8272.386


    * conductor is not compressed
    → Other cross-sections on request.
    1) Basic rated current acc. to DIN VDE 276-603 (HD 603)
    Technical values can change. No responsibility is therefore taken for correctness.

    0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables,NA2XY specifications(data sheet,table,full form)
