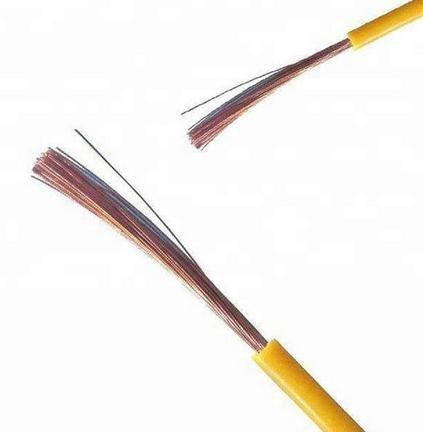

    Yellow PVC Insulated Electrical Wire Sheathed Flat Installation Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    Yellow PVC Insulated Electrical Wire Sheathed Flat Installation Cable

    Yellow PVC Insulated Electrical Wire Sheathed Flat Installation Cable


    Application

    Installation cable for effective protection against influence of alternating electromagnetic fields by means of static shield. Such shield protection is specially used in computer sector, hospitals or measuring points in industry applying measuring instruments sensitive to electromagnetic fields. These cables are also most suitable for laying in living-rooms of the people oversensitive to radiation. Possible laying on or under plaster in dry or damp areas, same as in concrete and walls. External laying is possible only if the cable is not exposed to direct sunlight or if it is laid in cable canals. Use in dangerous environment is not permitted.


    Standards
    DIN VDE 0250 part 204/209


    Construction


    Conductor:bare copper conductor class 1 (solid) acc. to IEC 60228 / HD 383 / DIN VDE 0295
    Insulation:PVC compound TI1 acc. to DIN VDE 0281 part 1, concentrically stranded cores color marked acc. to HRN HD 308 S2 / DIN VDE 0293-308, with yellow-green protective core
    Filler:cores enveloped in plastic compound
    Screen, electrical shield:Al-foil, contact conductor of tinned copper (1,5 mm²)
    Sheath:PVC compound TM1 acc. to DIN VDE 0281 part 1
    sheath colour:yellow
    Core colour marking:HR

    Technical data


    Temperature range:
    during installationi:+5 °C up to +70 °C
    fixed installed:-30 °C up to +70 °C
    at short circuit of max. 5 s:up to 150 °C
    Nominal voltage:Uο/U = 300/500 V
    Test voltage:2000 V
    Minimal inner bending radius:6D
    Behaviour in fire:IEC 60332-1

    Dimensions – number of cores x conductor cross-sectionConstruction of individual conductorExternal diameterInsulation thicknessSheath thicknessConductor resistance at 20 °CSpecific el. resistance of insulation at 70 °CCu weightCable weightPacking*
    nominalmin-max.nominalnominalmax.min.approx.
    mm²n x mmmmmmmmΩ/kmMΩkmkg/kmkg/km
    3 x 1,5/1,51 x 1,3810,50,61,412,10,10051153,7c.100, dr500
    3 x 2,5/1,51 x 1,7812,00,71,47,410,009480202,8c.100, dr500
    3 x 4/1,51 x 2,2613,10,81,44,610,0087123290,0CUT
    3 x 6/1,51 x 2,7014,00,81,63,080,0074180379CUT
    4 x 1,5/1,51 x 1,3811,50,61,412,10,10065184,0c.100
    4 x 2,5/1,51 x 1,7813,00,71,47,410,0094104256,0c.100
    5 x 1,5/1,51 x 1,3812,00,61,412,10,10080207,6c.100
    5 x 2,5/1,51 x 1,7813,50,71,47,410,0094128284,5c.100
    5 x 4 /1,51 x 2,2616,40,81,44,610,0087200444,0CUT
    5 x 6/1,51 x 2,7017,10,81,63,080,0074296567CUT
    5 x 10/1,51 x 3,518,21,01,61,830,0072488863CUT
    7 x 1,5/1,51 x 1,3813,00,61,412,10,100106263,0CUT

    *) Packing: c.100 = coil 100 m, d.500 = drum 500 m CUT = cable in different lengths on drum or reel, possible cutting at required length
