    Bare Copper Conductor Insulated Electrical Wire For Kitchens And Offices

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Bare Copper Conductor Insulated Electrical Wire For Kitchens And Offices

    Bare Copper Conductor Insulated Electrical Wire For Kitchens And Offices


    Insulated Electrical Wire Application


    Ordinary duty PVC cable for use in domestic appliances, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment. Generally unsuitable for outdoor use or industrial applications.


    Insulated Electrical Wire Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Insulated Electrical Wire Construction

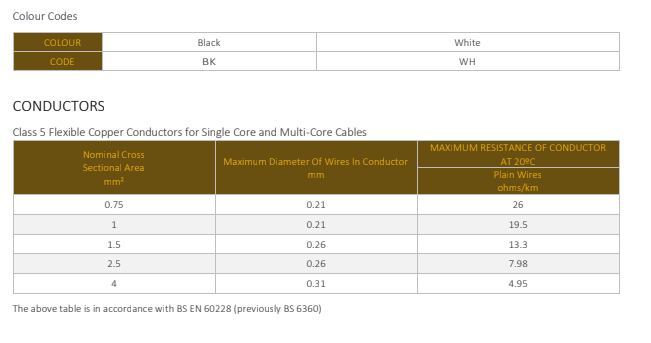

    Conductor
    Class 5 flexible copper conductor according to BS EN 60228

    Insulation
    PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363

    Sheath
    PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363


    Insulated Electrical Wire Characteristics


    Voltage Rating (Uo/U)
    300/500V

    Temperature Rating
    Flexed: 5°C to 70°C

    Minimum Bending Radius
    Flexed: 8 x overall diameter

    Core Identification
    2 core: Blue Brown
    3 core: Green/Yellow Blue Brown
    4 core: Green/Yellow Brown Black Grey
    5 core: Green/Yellow Brown Black Grey Blue

    Sheath Colour
    White, Black

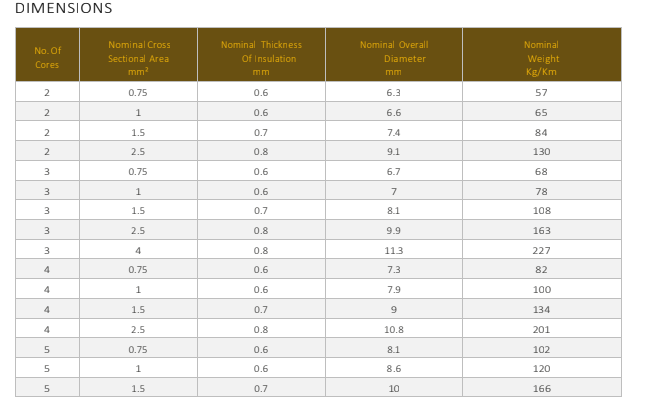

    Size, Weight & Electrical Specification
