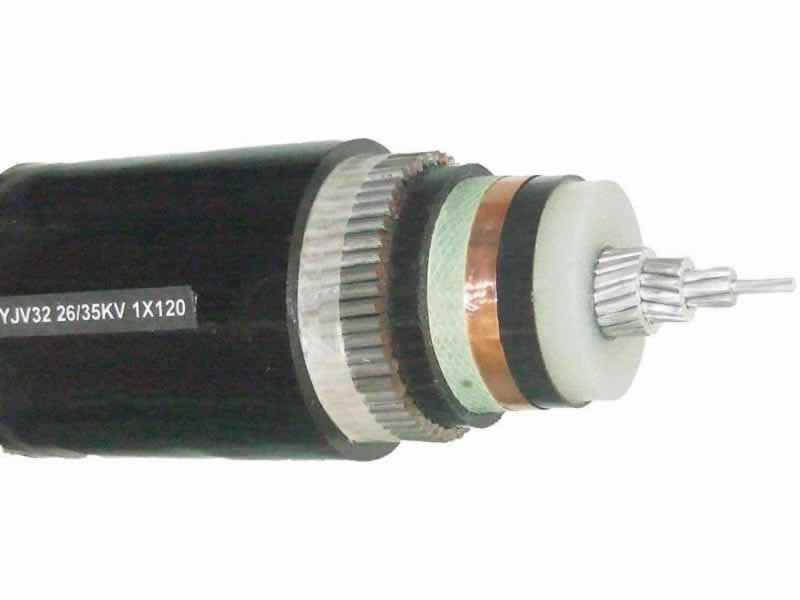

    Underground Armoured Medium Voltage Power Cables With XLPE Insulated

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : LV XLPE Power Cable
    Certification : IEC60502-1 BS5467 BS6346 VDE 0276-603 IEC60502-2 BS 6622
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Underground Armoured Medium Voltage Power Cables With XLPE Insulated

    MV XLPE Armoured Power Cable,Medium Voltage XLPE Insulated Armoured Power Cable


    MV XLPE Armoured Power Cable (Medium Voltage XLPE Insulated Armoured Power Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

    Medium Voltage,Three Cores, Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable


    Application:


    Medium Voltage XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.


    Property:


    1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
    2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
    3.the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
    4.Excellent electrical performance, resistance to chemical corrosion.


    Construction:


    3.6/6(7.2)kV, 3.8/6.6(7.2)kV,
    6/10(12)kV,6.35/11(12)kV,
    8.7/10(15)kV,8.7/15(17.5)kV,
    12/20(22)kV,12.7/22(24)kV,
    12.7/22(24)kV,18/30(36)kV, 19/33(36)kV
    XLPE Insulated Power Cable
    ConductorInsulationArmorOuter Sheath
    AluminumCopperXLPESWSTDSTAWPVCPE
    Cu/XLPE/PVC PP------------P
    Cu/ XLPE /PE PP------------ P
    Al/ XLPE /PVCP P------------P
    Al/ XLPE /PEP P------------ P
    Cu/ XLPE /STA/PVC PP---P------P
    Cu/ XLPE /STA/PE PP---P------ P
    Al/ XLPE /STA/PVCP P---P------P
    Al/ XLPE /STA/PEP P---P------ P
    Cu/ XLPE /DSTA/PVC PP------P---P
    Cu/ XLPE /DSTA/PE PP------P--- P
    Al/ XLPE /DSTA/PVCP P------P---P
    Al/ XLPE /DSTA/PEP P------P--- P
    Cu/ XLPE /SWA/PVC PPP---------P
    Cu/ XLPE /SWA/PE PPP--------- P
    Al/PVC/SWA/PVCP PP---------P
    Al/PVC/SWA/PEP PP--------- P
    Cu/PVC/AWA/PVC PP---------PP
    Cu/PVC/AWA/PE PP---------P P
    Al/PVC/AWA/PVCP P---------PP
    Al/PVC/AWA/PEP P---------P P
    Armor material : SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

    It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.


    Voltage rating for Medium Voltage XLPE Power CableNo. x Nominal Cross Section
    of Conductor No. x mm2
    1 core3 core


    3.6/6(7.2)kV
    3.6/6.6(7.2) kV, 6/10(12)kV
    8.7/10(12)kV, 8.7/15(17.5)kV
    12/20(24)kV
    18/30(36)kV
    21/35(40.5)kV
    26/35(40.5)kV
    1x 25 mm23x 25 mm2
    1x35 mm23x 35 mm2
    1x50 mm23x 50 mm2
    1x70 mm23x 70 mm2
    1x95 mm23x 95 mm2
    1x120 mm23x 120 mm2
    1x150 mm23x 150 mm2
    1x185 mm23x 185 mm2
    1x240 mm23x 240 mm2
    1x300 mm23x 300 mm2
    1x400 mm23x 400 mm2
    1x500 mm23x 500 mm2
    1x630 mm2
