    Plain Copper Sheath Mineral Insulated MI Cable Temperature Rating -10°C To 250°C

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : BS 6387
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

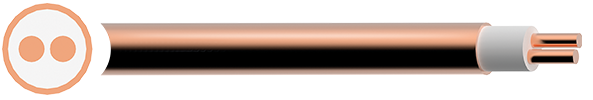

    Plain Copper Sheath Mineral Insulated MI Cable Temperature Rating -10°C To 250°C

    Mineral Insulated Cable, MI cable


    MI cable are intended to be installed in critical safety circuits which are used to operate under fire conditions in severe applications where the mechanical cables performances are primarily required.


    Production process foresee many steps of diameter reduction (both drawings and rollings) separated by high temperature annealing.

    Strong compression of MgO powder (density about 2 g/cm3) allows very high values of insulation resistance (also if burned, 180° bent or flattened) and thermal conductivity. Therefore current ratings are higher than soft skin cables, especially at high temperature.



    British Standard BS6387 covers the performance requirements and test methods for cables required to maintain circuit integrity under fire conditions, It has been developed to assist installation designers with their assessment of the fire performance characteristics of various types of cables and their selection for specific applications. In particular, it covers the cables' ability to maintain circuit integrity against set time and temperature parameters.

    BS6387 covers fire resistant cables with a voltage rating of 300/500V and 450/750V. It also covers mineral-insulated cables manufactured in accordance with BS6207.


    Fire Tests
    BS 6387
    Following tests are carried out to verify if a cable is capable of maintaining circuit integrity under fire condition, fire with water, and fire with mechanical shocks. During the tests the cables are maintained at their rated voltage.

    Fire Resistance (Cat. A B C S)

    The cable is exposed to fire at the specified temperature and time.

    Fire and Water Resistance (Cat. W)

    The cable is exposed for 15 minutes to flame at 650°C and for additional 15 minutes to fire and water spray

    Fire Resistance with Mechanical Shocks (Cat. X Y Z)

    The cable is mounted on a vertical panel and shocked with a steel bar for 15 minutes while submitted to the action of a flame.

    Performance Table
    TestCategory
    Fire Resistance
    650℃ for 3 hoursA
    750℃ for 3 hoursB
    950℃ for 3 hoursC
    950℃ for 20 minutesS
    Resistance to Fire and Water
    650℃W
    Resistance to Fire with Mechanical Shock
    650℃X
    750℃Y
    950℃Z

    General Standards

    Basic DesignIEC 60702-1 & 2
    Fire resistantBS 6387 (cat. C-W-Z)
    BS 8434-2
    EN 50200 annex E
    IEC 60331-21
    Acid gas emissionIEC 60754-2
    Smoke densityEN 61034-2
    Cable Configuration
    Cable TypeCore n° x
    Core Size
    (mm2)
    Bare Cable
    Diameter
    (mm)
    LSZH Cable
    Diameter
    (mm)
    Core
    Diameter
    (mm)
    Core
    Resistance
    (Ohm/km)
    Copper
    Sheath
    Section
    (mm2)
    Copper
    Sheath
    Resistance
    (Ohm/km)
    Nominal
    Length (m)
    Tolerance 5%
    Coil
    Diameter
    (mm)
    Bare Cable
    Weight
    (Kg/m)
    LSZH Cable
    Weight
    (Kg/m)
    FIRECEL MI 900L LIGHT DUTY CABLES (300/500 V) - Multi core L cables
    2 L 12 x 15,106,401,1317,246,042,85100. 19001200103124
    2 L 1.52 x 1.55,707,001,3811,497,122,42100. 15001200132155
    2 L 2.52 x 2.56,607,901,786,909,411,83100. 110012000.18206
    2 L 42 x 47,709,202,264,3112,151,42100. 80012002490.28
    3 L 13 x 15,807,101,1317,247,562,28100. 15001200131154
    3 L 1.53 x 1.56,407,701,3811,498,931,93100. 12001200166192
    3 L 2.53 x 2.57,308,801,786,9010,681,61100. 8001200225258
    4 L 14 x 16,307,601,1317,248,781,96100. 130012000.16185
    4 L 1.54 x 1.57,008,301,3811,4910,211,69100. 10001200204232
    4 L 2.54 x 2.58,109,601,786,9012,831,34100. 7001200272308
    7 L 17 x 17,609,101,1317,2411,571,498001200223258
    7 L 1.57 x 1.58,409,901,3811,4913,331,296001200289326
    7 L 2.57 x 2.59,7011,201,786,9017,420,995001200417459
    2 T 1*2 x 15,106,401,1317,246,042,85100. 19001200103124
    2 T 1. 5*2 x 1.55,707,001,3811,497,122,42100. 15001200132155
    2 T 2.5*2 x 2.56,607,901,786,909,411,83100. 110012000.18206
    FIRECEL MI 901H HEAVY DUTY CABLES (450/750 V) - Single core H cables
    1 H 1.51 x 1.54,906,201,3811,495,782,982050120090107
    1 H 2.51 x 2.55,306,601,786,906,442,6817501200111128
    1 H 41 x 45,907,202,264,317,702,2414001200143166
    1 H 61 x 66,407,702,762,878,931,9312001200176202
    1 H 101 x 107,308,803,571,7210,681,619501200235268
    1 H 161 x 168,309,804,511,0813,161,317301200319356
    1 H 251 x 259,6011,105,640,6916,961,025401200443485
    1 H 351 x 3510,7012,206,680,4920,230,854401600581627
    1 H 501 x 5012,1013,607,980,3424,730,703501600764816
    1 H 701 x 7013,7015,209,440,2530,900,5627516009861,044
    1 H 951 x 9515,4017,4011,000,1836,690,4721516001,2791,367
    1 H 1201 x 12016,8018,8012,360,1442,590,4018516001,5601,658
    1 H 1501 x 15018,4020,4013,820,1149,480,3515516001,8671,974
    1 H 1851 x 18520,4022,9015,350,0957,470,3012516002,3152,460
    1 H 2401 x 24023,3025,8017,480,0769,390,259816003,0203,186
    1 H 3001 x 30026,0028,5019,540,0684,550,208018003,8103,986
    1 H 4001 x 40030,0032,5022,570,04105,970,168018005,0065,199
    FIRECEL MI 900H HEAVY DUTY CABLES (450/750 V) - Multi core H cables
    2 H 1.52 x 1.57,99,41.3811.4912.491.387501200225256
    2 H 2.52 x 2.58,710,21.786.914.561.186101200268306
    2 H 42 x 49,811,32.264.3117.610.984801200345388
    2 H 62 x 610,912,42.762.8720.930.823701600431478
    2 H 102 x 1012,714,23.571.7226.740.642801600608662
    2 H 162 x 1614,716,24.511.0834.110.512051600845907
    2 H 252 x 2517,119,15.640.6943.390.415016001,1381,238
    3 H 1.53 x 1.58,39,81.3811.4913.621.276701200242274
    3 H 2.53 x 2.59,310,81.786.916.141.075201200313354
    3 H 43 x 410,411,92.264.3119.340.8942016004050,45
    3 H 63 x 611,5132.762.8723.110.753501600516565
    3 H 103 x 1013,615,13.571.7230.280.572451600733791
    3 H 163 x 1615,617,64.511.0838.070.4518016001,0111,1
    3 H 253 x 2518,220,25.640.6947.370.3613516001,3811,487
    4 H 1.54 x 1.59,110,61.3811.4915.771.095601200298333
    4 H 2.54 x 2.510,111,61.786.918.470.934451600374418
    4 H 44 x 411,412,92.264.3122.90.753501600496545
    4 H 64 x 612,714,22.762.8726.740.642701600623677
    4 H 104 x 1014,816,33.571.7234.360.52051600884946
    4 H 164 x 1617,319,34.511.0844.420.3914516001,2361,337
    4 H 254 x 2520,122,65.640.6956.010.3111016001,7521,895
    7 H 1.57 x 1.510,812,31.3811.4920.730.833851600431477
    7 H 2.57 x 2.512,113,61.786.924.730.73101600557609
    12 H 1.512 x 1.514,115,61.3811.4931.850.542101600685746
    12 H 2.512 x 2.515,617,61.786.937.640.4617516008780,97
    19 H 1.519 x 1.516,618,61.3811.4941.590.4115516009281,04

    LSZH Mineral Insulated Cable 500V, 750V


    Mineral Insulated Cable 500V, 750V
