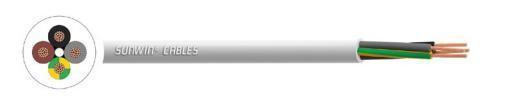

    309-Y / H05V2V2-F BS EN 50525-2-11 Flexible Cable

    309-Y / H05V2V2-F BS EN 50525-2-11 Flexible Cable


    APPLICATION

    For internal wiring or supply cords to electrical apparatus, particularly for use in high temperature zones such as lighting applications. Not suitable for outdoor use.


    CONSTRUCTION

    Conductor

    Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)


    Insulation

    PVC (Polyvinyl Chloride) Type TI3 according to BS EN 50363


    Sheath

    PVC (Polyvinyl Chloride) Type TM3 according to BS EN 50363

    CABLE STANDARDS

    BS EN 50525-2-11 (previously BS 6500, BS 7919 table 41),

    BS EN/IEC 60332-1-2


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Sunwin Cables laboratory.

    Cable performance in respect of conductor resistance, construction quality (workmanship),dimensional consistency, and other parameters are verified to published standardsand approved product drawings. Conformance to RoHS (Restriction of the use ofHazardous Substances) is determined and confirmed.


    CHARACTERISTICS

    Voltage Rating (Uo/U) 300/500V


    Temperature Rating

    Flexed: 0°C to +90°C


    Minimum Bending Radius Fixed: 6 x overall diameter Flexed: 10 x overall diameter


    Core Identification

    1. core: Blue Brown
    2. core: Green/Yellow Blue Brown
    3. core: Green/Yellow Brown Black Grey
    4. core: Green/Yellow Brown Black Grey Blue

    Sheath Colour

    White



    DIMENSIONS


    Sunwin PART NO.NO. OF CORES

    NOMINAL CROSS SECTIONAL AREA

    mm²

    NOMINAL THICKNESS OF INSULATION

    mm

    NOMINAL THICKNESS OF SHEATH

    mm

    NOMINAL OVERALL DIAMETER

    mm

    NOMINAL WEIGHT

    kg/km

    A5Y020075HRWH20.750.60.86.363
    A5Y030075HRWH30.750.60.86.774
    A5Y03010HRWH310.60.8786
    A5Y03015HRWH31.50.70.98.1115
    A5Y03025HRWH32.50.819.7170
    A5Y040075HRWH40.750.60.87.378
    A5Y04010HRWH410.60.97.9110
    A5Y04015HRWH41.50.719140
    A5Y04025HRWH42.50.81.110.8210
    A5Y050075HRWH50.750.60.98.1105

    CONDUCTORS

    Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables


    NOMINAL CROSS SECTIONAL AREA

    mm²

    MAXIMUM DIAMETER OF WIRES IN CONDUCTOR

    mm

    MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC

    Plain Wires

    ohms/km

    Metal-Coated Wires

    ohms/km

    0.750.212626.7
    10.2119.520
    1.50.2613.313.7
    2.50.267.988.21

    The above table is in accordance with BS EN 60228 (previously BS 6360)


    ELECTRICAL CHARACTERISTICS

    Current Carrying Capacity and Mass Supportable


    NOMINAL CROSS SECTIONAL AREA

    mm2

    CURRENT CARRYING CAPACITY

    MAXIMUM MASS SUPPORTABLE BY TWIN FLEXIBLE CORD

    (See Regulations 522.7.2 and 559.6.1.5 of the 17th Edition of IEE Wiring Regulations)

    kg


    Single-Phase AC

    Amps


    Three-Phase AC

    Amps

    0.75663
    110105
    1.516165
    2.525205

    The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations.


    Voltage Drop


    NOMINAL CROSS SECTIONAL AREA

    mm²

    DC OR SINGLE-PHASE AC

    mV/A/m

    THREE-PHASE AC

    mV/A/m

    0.756254
    14640
    1.53227
    2.51916

    Conductor operating temperature: 60ºC*

    * The tabulated values above are for 60ºC thermoplastic or thermosetting insulated flexible cords. For other types of flexible cords they are to be multiplied by the following factors: for thermoplastic or thermoset insulation at 90ºC: 1.09, at 105ºC: 1.31


    The above table is in accordance with Table 4F3B of the 17th Edition of IEE Wiring Regulations.


    DE-RATING FACTORS

    De-Rating factor for ambient temperature 60ºC thermoplastic or thermosetting insulated cords


    AIR TEMPERATURE35ºC40ºC45ºC50ºC55ºC
    DE-RATING FACTOR0.910.820.710.580.41

    The above table is in accordance with Table 4F3A of the 17th Edition of IEE Wiring Regulations.


    The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication. When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
