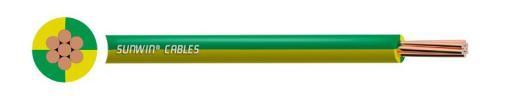

    6491X / H07V-R / H07V-U / BS EN 50525-2-31 Cable

    6491X / H07V-R / H07V-U / BS EN 50525-2-31 Cable

    APPLICATION

    6491X Cable H07V-R/H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

    CONSTRUCTION

    Conductor

    H07V-R: Class 2 stranded copper conductor to BS EN 60228 (previously BS 6360)

    H07V-U: Class 1 solid copper conductor to BS EN 60228 (previously BS 6360)

    Insulation

    PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363

    CABLE STANDARDS

    BS EN 50525-2-31 (previously BS 6004) BASEC approved, BS EN/IEC 60332-1-2

    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Sunwin Cables laboratory.

    Cable performance in respect of conductor resistance, construction quality (workmanship),dimensional consistency, and other parameters are verified to published standardsand approved product drawings. Conformance to RoHS (Restriction of the use ofHazardous Substances) is determined and confirmed.

    CHARACTERISTICS

    Voltage Rating (Uo/U) 450/750V

    Temperature Rating

    -15°C to +70°C

    Minimum Bending Radius

    Up to 10mm²: 3 x overall diameter 10mm² to 25mm²: 4 x overall diameter Above 25mm²: 5 x overall diameter

    Insulation Colour

    Red Black Blue Yellow White Green/Yellow Grey Brown

    DIMENSIONS

    Sunwin PART NO.

    NOMINAL CROSS SECTIONAL AREA

    mm²

    NOMINAL THICKNESS OF INSULATION

    mm

    NOMINAL OVERALL DIAMETER

    mm

    NOMINAL WEIGHT

    kg/km

    A2X*0015 1.5 0.7 2.9 22
    A2X*0025 2.5 0.8 3.6 32
    A2X*0040 4 0.8 4.1 50
    A2X*0060 6 0.8 4.7 71
    A2X*010 10 1 5.9 110
    A2X*016 16 1 6.8 164
    A2X*025 25 1.2 8.4 256
    A2X*035 35 1.2 9.4 346
    A2X*050 50 1.4 11 473
    A2X*070 70 1.4 12.7 674
    A2X*095 95 1.6 14.7 913
    A2X*120 120 1.6 16.2 1150
    A2X*150 150 1.8 18 1416
    A2X*185 185 2 20 1749
    A2X*240 240 2.2 23 2317
    A2X*300 300 2.4 25.2 3049
    A2X*400 400 2.6 28.4 3657
    A2X*500 500 2.8 31.8 4700
    A2X*630 630 2.8 38.1 5890

    * Sunwin Part No. shown above designate the sheath colour (*). For each colour substitute * for a colour code as listed below. e.g. A2XRD0040 = 4mm2 Red

    Colour Codes

    COLOUR Black Blue Grey Green/Yellow Red Yellow Brown White
    CODE BK BL GR GY RD YW BR WH

    CONDUCTORS

    Class 2 Stranded Conductors for Single Core and Multi-Core Cables

    NOMINAL CROSS SECTIONAL AREA

    mm²

    MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
    Circular Circular Compacted Shaped Annealed Copper Conductor
    Cu Al Cu Al Cu Al

    Plain Wires

    ohms/km

    1.5 7 - 6 - - - 12.1
    2.5 7 - 6 - - - 7.41
    4 7 - 6 - - - 4.61
    6 7 - 6 - - - 3.08
    10 7 7 6 6 - - 1.83
    16 7 7 6 6 - - 1.15
    25 7 7 6 6 6 6 0.727
    35 7 7 6 6 6 6 0.524
    50 19 19 6 6 6 6 0.387
    70 19 19 12 12 12 12 0.268
    95 19 19 15 15 15 15 0.193
    120 37 37 18 15 18 15 0.153
    150 37 37 18 15 18 15 0.124
    185 37 37 30 30 30 30 0.0991
    240 37 37 34 30 34 30 0.0754
    300 61 61 34 30 34 30 0.0601
    400 61 61 53 53 53 53 0.047
    500 61 61 53 53 53 53 0.0366
    630 91 91 53 53 53 53 0.0283

    The above table is in accordance with BS EN 60228 (previously BS 6360)

    ELECTRICAL CHARACTERISTICS

    Current Carrying Capacity

    NOMINAL CROSS REFERENCE METHOD A REFERENCE METHOD B REFERENCE METHOD C REFERENCE METHOD F
    SECTIONAL AREA (ENCLOSED IN CONDUIT (ENCLOSED IN CONDUIT (CLIPPED DIRECT)

    (IN FREE AIR OR ON A PERFORATED

    CABLE TRAY ETC HORIZONTAL

    mm² IN THERMALLY ON A WALL OR IN A Amps OR VERTICAL ETC)
    INSULATING WALL ETC) TRUNKING ETC) Amps
    Amps Amps

    Touching

    Spaced by one diameter

    2 Cables Single-Phase AC or DC or

    3 Cables Three-Phase AC flat

    2 Cables 3 or 4 Cables
    2 Cables 3 or 4 Cables 2 Cables 3 or 4 Cables

    Single-

    Phase

    Three-

    Phase

    2 Cables 3 Cables 3 Cables

    Single-

    Phase

    Three-

    Phase

    Single-

    Phase

    Three-

    Phase

    AC or DC flat AC flat and

    Single-

    Phase

    Three-

    Phase

    Three-

    Phase

    Horizontal Vertical
    AC or DC AC AC or DC AC or touching touching or AC or DC flat AC flat AC trefoil
    trefoil
    1.5 14.5 13.5 17.5 15.5 20 18 - - - - -
    2.5 20 18 24 21 27 25 - - - - -
    4 26 24 32 28 37 33 - - - - -
    6 34 31 41 36 47 43 - - - - -
    10 46 42 57 50 65 59 - - - - -
    16 61 56 76 68 87 79 - - - - -
    25 80 73 101 89 114 104 131 114 110 146 130
    35 99 89 125 110 141 129 162 143 137 181 162
    50 119 108 151 134 182 167 196 174 167 219 197
    70 151 136 192 171 234 214 251 225 216 281 254
    95 182 164 232 207 284 261 304 275 264 341 311
    120 210 188 269 239 330 303 352 321 308 396 362
    150 240 216 300 262 381 349 406 372 356 456 419
    185 273 245 341 296 436 400 463 427 409 521 480
    240 321 286 400 346 515 472 546 507 485 615 569
    300 367 328 458 394 594 545 629 587 561 709 659
    400 - - 546 467 694 634 754 689 656 852 795
    500 - - 626 533 792 723 868 789 749 982 920
    630 - - 720 611 904 826 1005 905 855 1138 1070

    Ambient temperature: 30ºC

    Conductor operating temperature: 70ºC

    The above table is in accordance with Table 4D1A of the 17th Edition of IEE Wiring Regulations.

    Voltage Drop

    NOMINAL CROSS SECTIONAL AREA

    mm²

    2 CABLES DC

    mV/A/m

    2 CABLES SINGLE-PHASE AC

    mV/A/m

    3 OR 4 CABLES THREE-PHASE AC

    mV/A/m

    Reference Methods A and B

    (enclosed in conduit or trunking)

    Reference Methods C, F (clipped direct, on tray or in free air)

    Reference Methods A and B

    (enclosed in conduit

    or trunking)

    Reference Methods C, F (clipped direct, on tray or in free air)

    Cable

    Touching

    Cable

    Spaced

    Cable Touching Trefoil

    Cable

    Touching Flat

    Cable

    Spaced*

    Flat

    1.5 28 29 29 29 25 25 25 25
    2.5 18 18 18 18 15 15 15 15
    4 11 11 11 11 9.5 9.5 9.5 9.5
    6 7.3 7.3 7.3 7.3 6.4 6.4 6.4 6.4
    10 4.4 4.4 4.4 4.4 3.8 3.8 3.8 3.8
    16 2.8 2.8 2.8 2.8 2.4 2.4 2.4 2.4
    r x z r x z r x z r x z r x z r x z r x z
    25 1.75 1.80 0.33 1.80 1.75 0.20 1.75 1.75 0.29 1.80 1.50 0.29 1.55 1.50 0.18 1.50 0.15 0.25 1.55 1.50 0.32 1.55
    35 1.25 1.30 0.31 1.30 1.25 0.20 1.25 1.25 0.28 1.30 1.10 0.27 1.10 1.10 0.17 1.10 1.10 0.24 1.10 1.10 0.32 1.15
    50 0.93 0.95 0.30 1.00 0.93 0.19 0.95 0.93 0.28 0.97 0.81 0.26 0.85 0.80 0.17 0.82 0.80 0.24 0.84 0.80 0.32 0.86
    70 0.63 0.65 0.29 0.72 0.63 0.19 0.66 0.63 0.27 0.69 0.56 0.25 0.61 0.55 0.16 0.57 0.55 0.24 0.60 0.55 0.31 0.63
    95 0.46 0.49 0.28 0.56 0.47 0.18 0.50 0.47 0.27 0.54 0.42 0.24 0.48 0.41 0.16 0.43 0.41 0.23 0.47 0.40 0.31 0.51
    120 0.36 0.39 0.27 0.47 0.37 0.18 0.41 0.37 0.26 0.45 0.33 0.23 0.41 0.32 0.15 0.36 0.32 0.23 0.40 0.32 0.30 0.44
    150 0.29 0.31 0.27 0.41 0.30 0.18 0.34 0.29 0.26 0.39 0.27 0.23 0.36 0.26 0.15 0.30 0.26 0.23 0.34 0.26 0.30 0.40
    185 0.23 0.25 0.27 0.37 0.24 0.17 0.29 0.24 0.26 0.35 0.22 0.23 0.32 0.21 0.15 0.26 0.21 0.22 0.31 0.21 0.30 0.36
    240 0.18 0.20 0.26 0.33 0.19 0.17 0.25 0.19 0.25 0.31 0.17 0.23 0.29 0.16 0.15 0.22 0.16 0.22 0.27 0.16 0.29 0.34
    300 0.15 0.16 0.26 0.31 0.15 0.17 0.22 0.15 0.25 0.29 0.14 0.23 0.27 0.13 0.14 0.19 0.13 0.22 0.25 0.13 0.29 0.32
    400 0.11 0.13 0.26 0.29 0.12 0.16 0.20 0.12 0.25 0.27 0.12 0.22 0.25 0.11 0.14 0.18 0.11 0.21 0.24 0.10 0.29 0.31
    500 0.086 0.11 0.26 0.28 0.98 0.155 0.185 0.093 0.24 0.26 0.10 0.22 0.25 0.086 0.135 0.16 0.086 0.21 0.23 0.081 0.29 0.30
    630 0.068 0.094 0.25 0.27 0.081 0.155 0.175 0.076 0.24 0.25 0.08 0.22 0.24 0.072 0.135 0.15 0.072 0.21 0.22 0.066 0.28 0.29

    Conductor operating temperature: 70ºC

    r = Resistive Component x = Reactive Component z = Impedance Value

    *Spacings larger than one cable diameter will result in a larger voltage drop.

    The above table is in accordance with Table 4D1B of the 17th Edition of IEE Wiring Regulations.

    For cables having conductors of 16mm2 or less cross sectional area their inductances can be ignored and (mV/A/m)r values only are tabulated. For cables having conductors greater than 16mm2, cross sectional area the impedance values are given as (mV/A/m)z, together with the resistive component (mV/A/m)r and the reactive component (mV/A/m)x.

    The above paragraph is extracted from Appendix 4 of the 17th Edition of IEE Wiring Regulations.

    DE-RATING FACTORS

    For Ambient Air Temperatures other than 30ºC

    AMBIENT TEMPERATURE 25ºC 30ºC 35ºC 40ºC 45ºC 50ºC 55ºC
    DE-RATING FACTOR 1.03 1.00 0.94 0.87 0.79 0.71 0.61

    The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication. When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
