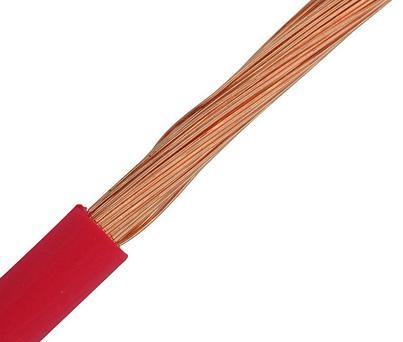

    Flexible Copper Insulated Electrical Wire H05Z K H07Z K BS EN 50525-3-41 Cable

    Flexible Copper Insulated Electrical Wire H05Z K H07Z K BS EN 50525-3-41 Cable


    APPLICATION

    LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.


    CONSTRUCTION

    Conductor

    Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)


    Insulation

    LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation according to BS EN 50363


    CABLE STANDARDS

    BS EN 50525-3-41 (previously BS 7211 Table 3 and 4b CENELEC HD22.9), BS EN/IEC 60332-1-2,

    BS EN/IEC 50267-2-1, BS EN/IEC 60754


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Sunwin Cables laboratory.

    Cable performance in respect of conductor resistance, construction quality (workmanship),dimensional consistency, and other parameters are verified to published standardsand approved product drawings. Conformance to RoHS (Restriction of the use ofHazardous Substances) is determined and confirmed.


    CHARACTERISTICS

    Voltage Rating (Uo/U)

    H05Z-K - 0.5mm2 to 1mm2: 300/500V H07Z-K - 1.5mm2 to 240mm2: 450/750V


    Temperature Rating

    -25°C to +90°C


    Minimum Bending Radius

    Up to 35mm2: 4 x overall diameter 50mm2 and above: 6 x overall diameter


    Insulation Colour

    Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink



    DIMENSIONS

    H05Z-K


    Sunwin PART NO.

    NOMINAL CROSS SECTIONAL AREA

    mm²

    THICKNESS OF INSULATION

    mm

    NOMINAL OVERALL DIAMETER

    MINIMUM RESISTANCE OF INSULATION AT 90°C

    Mohms/km

    NOMINAL WEIGHT

    kg/km

    Lower Limit

    mm

    Upper Limit

    mm

    A2Z*00500.50.61.92.40.0158.7
    A2Z*00750.750.62.22.80.01111.3
    A2Z*001010.62.42.90.0113.9

    H07Z-K


    Sunwin PART NO.

    NOMINAL CROSS SECTIONAL AREA

    mm²

    NOMINAL THICKNESS OF INSULATION

    mm

    NOMINAL OVERALL DIAMETER

    MINIMUM RESISTANCE OF INSULATION AT 900C

    Mohms/km

    NOMINAL WEIGHT

    kg/km

    Lower limit

    mm

    Upper limit

    mm

    A2Z*00151.50.72.83.50.01019.3
    A2Z*00252.50.83.44.30.00930.9
    A2Z*004040.83.94.90.00744.9
    A2Z*006060.84.45.50.00664.2
    A2Z*0101015.77.10.0056108.2
    A2Z*0161616.78.40.0046163.4
    A2Z*025251.28.410.60.0044248.1
    A2Z*035351.29.712.10.0038340.6
    A2Z*050501.411.514.40.0037484.2
    A2Z*070701.413.216.60.0032671
    A2Z*095951.615.118.80.0032895.8
    A2Z*1201201.616.720.90.00291111.1
    A2Z*1501501.818.623.30.00291389.2
    A2Z*185185220.625.80.00291724.1
    A2Z*2402402.223.529.40.00282225.4

    *Sunwin Part No. shown above designate the sheath colour (*). For each colour substitute * for a colour code as listed below. e.g. A2ZRD0015 = 1.5mm2 Red


    Colour Codes


    COLOURBlackBlueGreyGreen/ YellowOrangeRedPinkYellowVioletBrownWhite
    CODEBKBLGRGYORRDPKYWVIBRWH

    CONDUCTORS

    Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables


    NOMINAL CROSS SECTIONAL AREA

    mm²

    MAXIMUM DIAMETER OF WIRES IN CONDUCTOR

    mm

    MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC

    Plain Wires

    ohms/km

    0.50.2139
    0.750.2126
    10.2119.5
    1.50.2613.3
    2.50.267.98
    40.314.95
    60.313.3
    100.411.91
    160.411.21
    250.410.78
    350.410.554
    500.410.386
    700.510.272
    950.510.206
    1200.510.161
    1500.510.129
    1850.510.106
    2400.510.0801

    The above table is in accordance with BS EN 60228 (previously BS 6360)


    ELECTRICAL CHARACTERISTICS

    Current Carrying Capacity


    NOMINAL CROSS SECTIONAL AREA

    mm²

    REFERENCE METHOD A (ENCLOSED IN CONDUIT IN THERMALLY INSULATING WALL ETC)

    Amps

    REFERENCE METHOD B (ENCLOSED IN CONDUIT ON A WALL OR IN A TRUNKING ETC)

    Amps

    REFERENCE METHOD C (CLIPPED DIRECT)

    Amps

    REFERENCE METHOD F

    (IN FREE AIR OR ON A PERFORATED CABLE TRAY ETC HORIZONTAL OR VERTICAL ETC) TOUCHING

    Amps

    REFERENCE METHOD G (IN FREE AIR) SPACED BY ONE CABLE DIAMETER

    Amps

    2 Cables Single-Phase AC or DC or

    3 Cables Three-Phase AC flat


    2 Cables Single-Phase AC or DC


    3 or 4 Cables Three-Phase AC


    2 Cables Single-Phase AC or DC


    3 or 4 Cables Three-Phase AC


    2 Cables Single-Phase AC or DC flat or touching


    3 or 4 Cables Three-Phase AC flat and touching or trefoil


    2 Cables Single-Phase AC or DC

    flat


    3 Cables Three-Phase AC

    flat


    3 Cables Three-Phase AC

    trefoil


    Horizontal


    Vertical

    1141317151917.5-----
    1.5191723202523-----
    2.5262331283431-----
    4353142374641-----
    6454054485954-----
    10615475668174-----
    1681731008810999-----
    2510695133117143130161141135182161
    35131117164144176161200176169226201
    50158141198175228209242216207275246
    70200179253222293268310279268353318
    95241216306269355326377342328430389
    120278249354312413379437400383500454
    150318285393342476436504464444577527
    185362324449384545500575533510661605
    240424380528450644590679634607781719

    Ambient temperature: 30ºC

    Conductor operating temperature: 90ºC


    1. Where a conductor operates at a temperature exceeding 70ºC it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature (see also Regulation 512.1.2).

    1. Where cables in this table are connected to equipment or accessories designed to operate at a temperature not exceeding 70ºC, the current ratings given in the equivalent table for 70ºC thermoplastic insulated cables (Table 4D1A) must be used (see Regulation 523.1).

    The above table is in accordance with Table 4E1A of the 17th Edition of IEE Wiring Regulations.


    Voltage Drop


    NOMINAL CROSS SECTIONAL AREA

    mm²

    2 CABLES DC

    mV/A/m

    2 CABLES SINGLE-PHASE AC

    mV/A/m

    3 OR 4 CABLES THREE-PHASE AC

    mV/A/m

    Reference Methods A and B

    (enclosed in conduit or trunking)

    Reference Methods C, F and G (clipped direct, on tray or in free air)

    Reference Methods A and B

    (enclosed in conduit

    or trunking)

    Reference Methods C, F and G

    (clipped direct, on tray or in free air)


    Cable Touching


    Cable Spaced


    Cable

    Touching Trefoil


    Cable

    Touching Flat


    Cable

    Spaced* Flat

    14646464640404040
    1.53131313127272727
    2.51919191916161616
    41212121210101010
    67.97.97.97.96.86.86.86.8
    104.74.74.74.74444
    162.92.92.92.92.52.52.52.5
    rxzrxzrxzrxzrxzrxzrxz
    251.851.8500.3101.9001.8500.1901.851.8500.2801.8501.6000.2701.6501.6000.1651.6001.6000.1901.6001.6000.2701.650
    351.351.3500.2901.3501.3500.1801.351.3500.2701.3501.1500.2501.1501.1500.1551.1501.1500.1801.1501.1500.2601.200
    500.991.0000.2901.0500.9900.1801.0000.9900.2701.0000.8700.2500.9000.8600.1550.8700.8600.1800.8700.8600.2600.890
    700.680.7000.2800.7500.6800.1750.7100.6800.2600.7300.6000.2400.6500.5900.1500.6100.5900.1750.6200.5900.2500.650
    950.490.5100.2700.5800.4900.1700.5200.4900.2600.5600.4400.2300.5000.4300.1450.4500.4300.1700.4600.4300.2500.490
    1200.390.4100.2600.4800.3900.1650.4300.3900.2500.4700.3500.2300.4200.3400.1400.3700.3400.1650.3800.3400.2400.420

    Conductor operating temperature: 90ºC


    r = Resistive Component x = Reactive Component z = Impedance Value


    * Spacings larger than one cable diameter will result in a larger voltage drop.


    The above table is in accordance with Table 4E1B of the 17th Edition of IEE Wiring Regulations.


    For cables having conductors of 16mm2 or less cross-sectional area their inductances can be ignored and (mV/A/m)r values only are tabulated. For cables having conductors greater than 16mm2, cross-sectional area the impedance values are given as (mV/A/m)z, together with the resistive component (mV/A/m)r and the reactive component (mV/A/m)x.


    The above paragraph is extracted from Appendix 4 of the 17th Edition of IEE Wiring Regulations.


    DE-RATING FACTORS


    AMBIENT TEMPERATURE25ºC30ºC35ºC40ºC45ºC50ºC55ºC60ºC65ºC70ºC85ºC90ºC95ºC
    DE-RATING FACTOR1.021.000.960.910.870.820.760.710.650.58---

    The information contained within this datasheet is for guidance only and is subject to change without notice or liability. All the information is provided in good faith and is believed to be correct at the time of publication. When selecting cable accessories, please note that actual cable dimensions may vary due to manufacturing tolerances.
