    Tinned Copper Silicone Rubber Flexible Cable Braided Fiberglass Sheath

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : Fiberglass Braided Wire
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

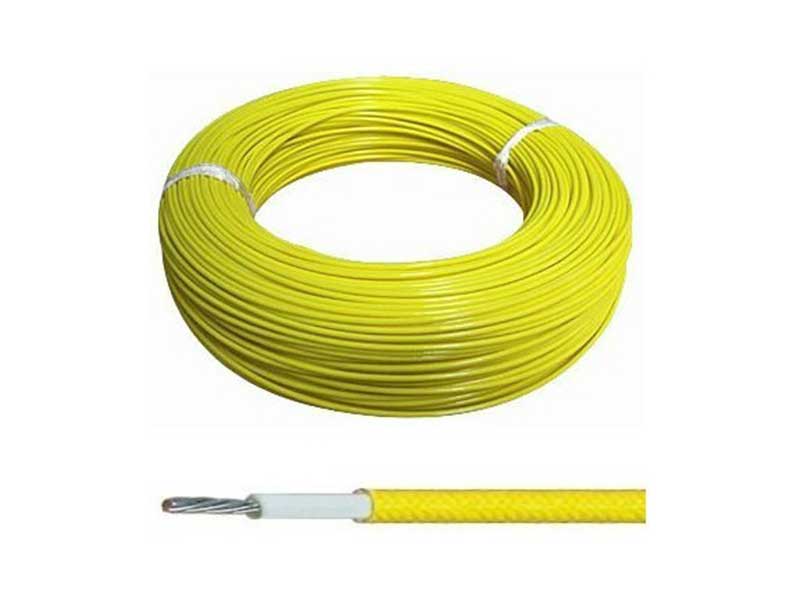

    Tinned Copper Silicone Rubber Flexible Cable Braided Fiberglass Sheath

    Silicone Rubber Fiberglass Wire,Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire


    Silicone Rubber Fiberglass Wire (Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    General of Silicone Rubber Insulation Fiberglass Braided Wire:


    Nominal voltage: 300/500V
    Temperature Range: -60° C~+180 ° C
    Testing Voltage: 2kV
    Conductor: Tinned Copper
    Insulator: Silicone Rubber
    Sheath: Fiberglass
    Colours: White-Blue-Red-Black-Brown-Yellow-Transparent
    Use: Lead wires for Home electric Appliances, lightings, electronic equipment and sensors etc.


    Technical Data:


    NameNominal
    section (mm2)
    Number/
    diameter (mm)
    diameter(mm)Diameter of wire (mm)Max resistance 20deg.C Ω/km
    norminalMax

    Tinned copper Silicone Rubber Insulation Fiberglass Braided Wire

    0.520/0.180.942.53.340.1
    0.7542/0.151.132.73.526.7
    1.032/0.201.312.93.720.0
    1.530/0.251.583.44.213.7
    2.549/0.252.064.05.08.21

    Tinned Copper Silicone Rubber Insulation Fiberglass Braided Wire,Silicone Rubber Fiberglass Wire specifications(data sheet,table,full form)
