    Higly Flexible Halogen Free Solar Pv Wire H1Z2Z2 K Photovoltaic Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    Higly Flexible Halogen Free Solar Pv Wire H1Z2Z2 K Photovoltaic Cable

    Higly Flexible Halogen Free Solar Pv Wire H1Z2Z2 K Photovoltaic Cable

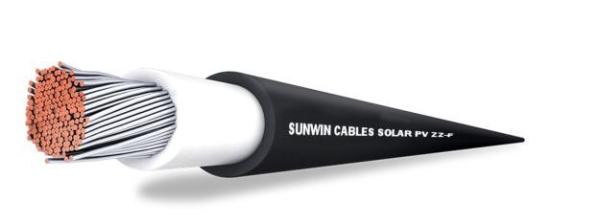

    SOLAR PV ZZ-F Dual cable is both TÜV and UL certified, as requested by the leading global manufacturers of photovoltaic panels and junction boxes. This cable is specially designed for the connection of photovoltaic panels, meeting the varying needs of the solar industry. Higly flexible cable, compatible with all major connectors. Suitable for wet, damp and humid locations.

    SOLAR PV ZZ-F DUAL cable performance

    Electrical performance

    LOW VOLTAGE 1,5/1,5 1kV · (1,8) kV · UL 2000 V


    Standard

    UL PV WIRE / UL USE-2 / EN 50618 / TÜV 2Pfg 1169-08 / UTE C 32-502


    Approvals

    CE

    UL LISTED

    TÜV

    EN

    RoHS


    Thermal performance

    Maximum service temperature: 120ºC.

    Maximum short-circuit temperature: 250ºC (max. 5 s).

    Minimum service temperature: -40ºC.


    Fire performance

    Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

    LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.

    Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%

    Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.


    Mechanical performance

    Minimum bending radius: x3 cable diameter.

    Impact resistance: AG2 Medium severity.


    Chemical performance

    Chemical & Oil resistance: Excellent.

    Grease & mineral oils resistance: Excellent.


    UV Resistant

    UV Resistant based on EN 50618, TÜV 2Pfg 1169-08 and UL 2556.


    Water performance

    Water presence: AD8 submerged.


    Estimated Lifetime

    Estimated lifetime 30 years based on UNE-EN 60216-2.


    Other

    Meter by meter marking.


    Installation conditions

    Open Air.

    Buried.


    Applications

    Solar PV installations.

    SOLAR PV ZZ-F DUAL cable design

    Conductor

    Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.


    Insulation

    Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV).


    Outer sheath

    Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV). Black colour.



    DIMENSIONS


    Cross

    section (mm2)

    Diame-

    ter (mm)

    Weight


    (Kg/km)

    Open

    Air (A)

    Inst. on

    surface (A)

    Inst.

    adjoining to surface (A)

    Voltage

    drop (V/A · km)

    1 x 4 (12 AWG)7,18355524414,3
    1 x 6 (10 AWG)7,71047067579,49
    1 x 10 (8 AWG)9,11599893795,46
    1 x 16 (6 AWG)10,12181321251073,47
    1 x 25 (4 AWG)11,53091761671422,23
    1 x 35 (2 AWG)12,64042182071761,58
