    UV Resistant XLPE Power Cable Bare Copper Class 2 Conductor BS EN 13602

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

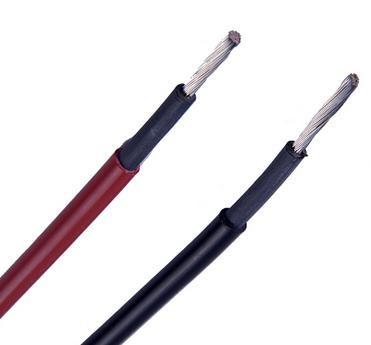

    UV Resistant XLPE Power Cable Bare Copper Class 2 Conductor BS EN 13602

    UV Resistant XLPE Power Cable Bare Copper Class 2 Conductor BS EN 13602


    APPLICATION

    For use in electrical grounding systems and on insulators for overhead transmission and distribution applications. Stranded conductors offer greater flexibility than solid.


    CONSTRUCTION
    Conductor
    Class 2 annealed stranded copper conductor according to BS EN 60228 (previously BS 6360)


    Standard

    BS EN 13602, BS EN 60228


    Approvals

    CE

    UL LISTED

    TÜV

    EN

    RoHS


    Thermal performance

    Maximum service temperature: 120ºC.

    Maximum short-circuit temperature: 250ºC (max. 5 s).

    Minimum service temperature: -40ºC.


    Fire performance

    Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

    LSZH (Low Smoke Zero Halogen) based on UNE-EN 60754-1 and IEC 60754-1.

    Low smoke emission based on UNE-EN 61034 and IEC 61034: Light transmittance > 60%

    Low corrosive gases emission based on UNE-EN 60754-2 and IEC 60754-2.


    Mechanical performance

    Minimum bending radius: x3 cable diameter.

    Impact resistance: AG2 Medium severity.


    Chemical performance

    Chemical & Oil resistance: Excellent.

    Grease & mineral oils resistance: Excellent.


    UV Resistant

    UV Resistant based on EN 50618, TÜV 2Pfg 1169-08 and UL 2556.


    Water performance

    Water presence: AD8 submerged.


    Estimated Lifetime

    Estimated lifetime 30 years based on UNE-EN 60216-2.


    Other

    Meter by meter marking.


    Installation conditions

    Open Air.

    Buried.


    Applications

    Solar PV installations.

    SOLAR PV ZZ-F DUAL cable design

    Conductor

    Class 5 (flexible) tinned copper, based on EN 60228 and IEC 60228.


    Insulation

    Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV).


    Outer sheath

    Low smoke zero halogen (LSZH) rubber (XLEVA type according to UL / E16 according to TÜV). Black colour.


    DIMENSIONS


    Cross

    section (mm2)

    Diame-

    ter (mm)

    Weight


    (Kg/km)

    Open

    Air (A)

    Inst. on

    surface (A)

    Inst.

    adjoining to surface (A)

    Voltage

    drop (V/A · km)

    1 x 4 (12 AWG)7,18355524414,3
    1 x 6 (10 AWG)7,71047067579,49
    1 x 10 (8 AWG)9,11599893795,46
    1 x 16 (6 AWG)10,12181321251073,47
    1 x 25 (4 AWG)11,53091761671422,23
    1 x 35 (2 AWG)12,64042182071761,58
