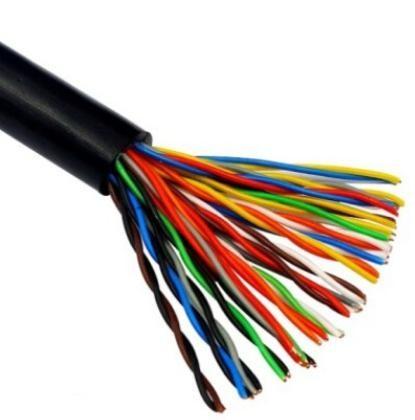

    Internal / External Telephone Cable Wire Low Smoke Zero Halogen Telecom Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    Internal / External Telephone Cable Wire Low Smoke Zero Halogen Telecom Cable

    Internal / External Telephone Cable Wire Low Smoke Zero Halogen Telecom Cable


    Application:

    Cables primarily designed for the interconnection of telephone equipment both internally and externally. In addition these cables may be used for the interconnection of other communication and control equipment or low level signalling applications. The cable specification is further enhanced by the use of a LSZH (Low Smoke Zero Halogen) outer sheath.


    Construction:

    Class 1 solid copper conductor according to BS EN 60228 (previously BS 6360)

    Insulation
    PVC (Polyvinyl Chloride)


    Separator
    Polyester wrapping tape


    Screen
    AL/PE (Aluminium/Polyethylene) tape


    Sheath
    LSZH (Low Smoke Zero Halogen)


    Temperature Rating
    0°C to +70°C


    Minimum Bending Radius
    15 x overall diameter


    Standards:

    CW1308B, BS EN/IEC 60754-1

    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of
    Hazardous Substances) is determined and confirmed.


    Cables supplies outdoor telephone cables (CW1128 & CW1198) designed specifically to withstand environmental factors such as UV and moisture, as well as the full spectrum of weather conditions. We also supply lightweight indoor telephone cables such as the CW1308 cable and J-YstY cable German specification cable widely used in European installations, and CW1423 cables for jumping BT telephone services terminated on IDC blocks.
