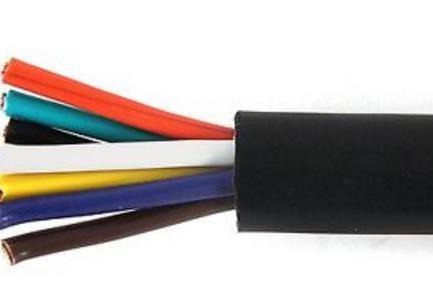

    High Current Ultra Flexible Welding Cable 6 CORE 450V Copper Conductor

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    High Current Ultra Flexible Welding Cable 6 CORE 450V Copper Conductor

    High Current Ultra Flexible Welding Cable 6 CORE 450V Copper Conductor


    Application:

    For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.



    Construction:

    16mm2 to 95mm2 : Class 6 extra flexible tinned copper conductor according to BS EN 60228 (previously BS 6360) 120mm2 and above: Class 5 flexible tinned copper conductor

    Separator
    PET (Polyester Tape)


    Insulation
    EPR (Ethylene Propylene Rubber) Type GP4 according to BS 7655


    Sheath
    HOFR (Heat and Oil Resistant and Flame Retardant) Sheath Type EM5 according to BS EN 50363

    Standards:

    BS 638 Part 4*, BS EN/IEC 60332-1-2

    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

    CHARACTERISTICS
    Voltage Rating
    100V (450V for non-welding applications if suitably protected from mechanical damage)


    Temperature Rating
    Flexed: -20°C to +85°C


    Minimum Bending Radius
    Flexed: 6 x overall diameter


    Sheath Colour
    Orange


    Note
    * Sizes up to and including 185mm2 conform to BS 638 Part 4
    Sizes above 185mm2 are generally to BS 638 Part 4
