    100 MHz RG 62 93 Ohm Weatherproof Coax Cable For Industrial Indoor Installation

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    100 MHz RG 62 93 Ohm Weatherproof Coax Cable For Industrial Indoor Installation

    100 MHz RG 62 93 Ohm Weatherproof Coax Cable For Industrial Indoor Installation


    Application:

    For indoor installation as well as in industrial areas in conduits and cableducts, for transmission of high frequency signals and power.

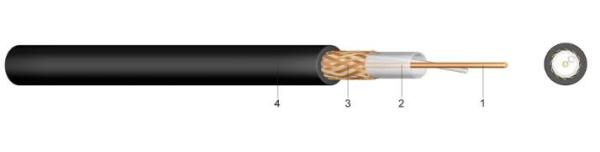

    Construction:

    1 ..... copper-platinate steel (Ø ca. 0,64mm)
    2 ..... core insulation of polyehtylene (PE) Ø ca. 3,7mm
    3 ..... screen of bare copper braiding
    4 ..... outer sheath of polyvinylchloride (PVC), black

    Information:

    In the halogen-free version the outer sheath consists of a special halogen-free plastic.

    Standards:

    according to US Standard MIL -C - 17

    Technical data:

    Temperature range

    in motion


    -5°C till +70°C

    Frequency range

    F max.

    [GHz]

    3

    Insulation resistance

    R iso

    [MOhm/km]

    10000

    Mutal capacitance


    [Ohm/km]

    155

    Attenuation

    100 MHz

    [dB / 100 m]

    9

    Capacitance

    C

    [NF/km]

    45

    Rel. velocity ratio

    V rel

    %

    83

    Electric strength

    50 Hz

    [KV] eff.

    3

    Bending radius

    min.

    v [mm]

    30

    Operating peak voltage


    [kV]

    1,1


    Type

    Copper
    figure

    kg/km

    Overall
    diameter
    appr.
    mm

    Weight

    appr.
    kg/km

    RG 62 A/U

    23


    6,2


    55


    RG 62 A/U bezhalogenový

    23


    6,2


    55
