    CU/XLPE/CTS/SWA Low Smoke Zero Halogen Cable With KEMA Certificate 12/20kv 3x300mm2

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : Low Smoke Zero Halogen Cable
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

    CU/XLPE/CTS/SWA Low Smoke Zero Halogen Cable With KEMA Certificate 12/20kv 3x300mm2

    CU/XLPE/CTS/SWA/ Low Smoke Zero Halogen Cable With KEMA Certificate 12/20kv 3x300mm2

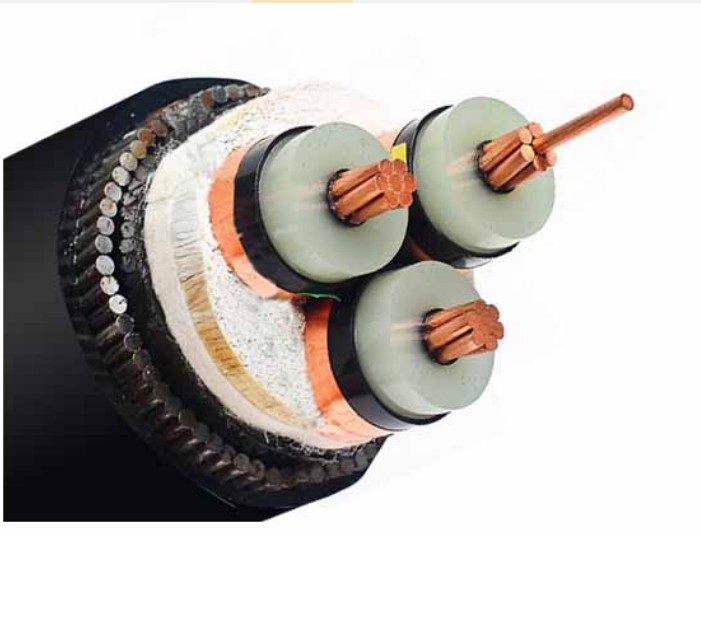

    Low Smoke Zero Halogen Cable Structure:


    Conductor: Solid or stranded copper/Aluminum

    Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)

    Filler: Polypropylene filament with lapped binding tape

    Binder: Binding tape

    Inner sheath: LOSH

    Armouring: Single Core: AWA (Aluminium Wire Armour)

    Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)

    Sheath: LOSH


    Low Smoke Zero Halogen Cable Application :


    1,Long term working temperature for the cable with PVC insulated is 70℃;

    Long term working temperature for the cable with XLPE insulated is 90℃

    2,Short circuit temperature

    For PVC insulated cable ,the highest conductor temperature is not more than160℃.(lasting time not over 5 seconds).

    For XLPE insulated cable ,the highest conductor temperature is not more than250℃.(Lasting time is not over 5 seconds).

    3,Laying temperature not less than 0℃ and the drop height is out of consideration.

    4,The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.

    5,Easy for installation, easy bending and light.


    CU/XLPE/CTS/SWA Low Smoke Zero Halogen Cable With KEMA Certificate 12/20kv 3x300mm2
