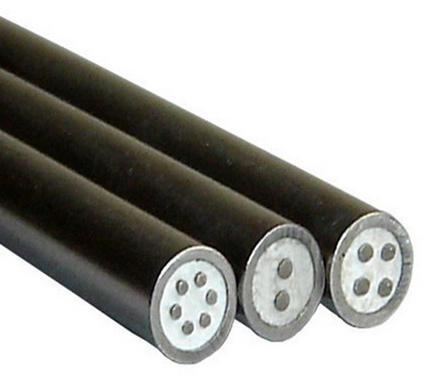

    LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating

    LSZH Mineral Insulated Thermocouple Cable DHP Copper Sheath Voltage Rating


    FIRECEL MI are intended to be installed in critical safety circuits which are used to operate under fire conditions in severe applications where the mechanical cables performances are primarily required.

    Production process foresee many steps of diameter reduction (both drawings and rollings) separated by high temperature annealing.

    Strong compression of MgO powder (density about 2 g/cm3) allows very high values of insulation resistance (also if burned, 180° bent or flattened) and thermal conductivity. Therefore current ratings are higher than soft skin cables, especially at high temperature.


    Cable Uses

    • Drilling & Tunnelling
    • Emergency Lighting
    • Fire Alarms
    • Fire Detection
    • Hazardous Areas
    • Historical Buildings
    • Industrial Plants
    • Harsh Environments
    • Mining

    Fire Standards

    Our ’Enhanced’ MI cables are manufactured in the European Union in accordance with British Standards BS EN 60702 –1: 2002 and EN 50200:2013 Clause 26.2. They hold LPCB-certification.



    Cable construction

    ConductorETP solid (not stranded) copper cores, from 1 to 400 mm2,
    melting point 1082°C
    InsulationMagnesium Oxide (MgO) as electrical insulation,
    high performance at high temperature (melting point 2600°C)
    Metallic Outer SheathHigh quality DHP copper sheath, manufactured starting from tubes extruded and drawn only (not welded),
    melting point 1082°C
    Outer SheathLSZH additional outer covering. Such flame retardant polyolefin is characterised by high performance in corrosion resistance and low smoke emission


    General Standards

    Basic DesignIEC 60702-1 & 2
    Fire resistantBS 6387 (cat. C-W-Z)
    BS 8434-2
    EN 50200 annex E
    IEC 60331-21
    Acid gas emissionIEC 60754-2
    Smoke densityEN 61034-2

    Available in the following colours: black, red & white with any other colour available for manufacture.

    “AC”clips packed in 100`s “rsfj”double clips packed in 50`s glands packed in 100`s

    Prefix to product code for ordering purposes.

    Carriage paid on all orders over £250.00 nett value.

    Flame retardant glands red also available on request
    Locknuts for glands charged extra m20 locknuts
    30150 the recommended stripping tool
    T3964 cable cutter for o.D. 50.0mm or 14.0mm max
