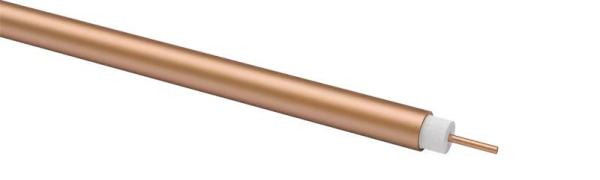

    0.6 / 1kV Inorganic Mineral Insulated Cable Resists Stranded Copper Conductor

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    0.6 / 1kV Inorganic Mineral Insulated Cable Resists Stranded Copper Conductor

    0.6 / 1kV Inorganic Mineral Insulated Cable Resists Stranded Copper Conductor


    Constructions

    Conductor: Stranded copper conductor

    Insulation: Inorganic insulation


    Operation character

    Fire-resistant property

    (1) According to national standards, fire-resistant wire and cable fire test method characteristic test, according to GB12666.6

    Class A, burn in fire with flame temperature 950°C, apply voltage of 750V between phase and phase and between phase and outer sheath,it should be able to withstand for 90min without breakdown.

    Class B, bun in fire with flame temperature 750-800°C, apply voltage of 750V between phase and phase and between phase and outer sheath,it should be able to withstand for 90min without breakdown.

    (2) According to the BS6378,flexible fireproof cable satisfies the following requirements:

    Class A 650°C 3h

    Class B 750°C 3h

    Class C 950°C 3h

    Class S 950°C 20min


    Electrical characteristics

    (1) Rated voltage: 0.6/1kV

    (2) Rated working voltage: light load 500V, heavy load 750V;

    (3) Rated current: single-core 25A-1,800A: multi-core 16A-500A;

    (4) Insulation resistance: insulation resistance≥ 1000MΩkm. Cable length less than 100m, then the insulation resistance≥ 10000MΩ;

    (5) Power frequency withstand voltage: apply voltage of 2,000V and 2,500V between phase and phase as well as phase and copper sheath of cables of 500V and 750V respectively, they should be able to withstand for 15min without being broken down.
