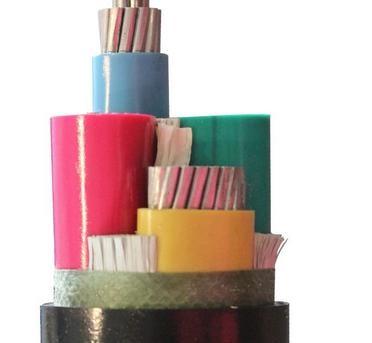

    Industrial Low Voltage Flexible Cable Halogen Free Polyolefine 4000 V Test Voltage

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    Industrial Low Voltage Flexible Cable Halogen Free Polyolefine 4000 V Test Voltage

    Industrial Low Voltage Flexible Cable Halogen Free Polyolefine 4000 V Test Voltage


    Technical data

    • Halogen-free security cable with improved characteristics in the case of fire to

    DIN VDE 0266

    • Temperature range

    -30°C to +70°C

    • Permissible operating temperature

    at conductor +90°C

    • Nominal voltage U0/U 0,6/1 kV
    • Test voltage 4000 V
    • Minimum bending radius :15x cable Ø

    • Radiation resistance

    up to 200x106 cJ/kg (up to 200 Mrad)

    • Caloric load values

    see Technical Informations


    Cable structure

    • Bare copper-conductor, to

    DIN VDE 0295 cl.1 or cl.2, single-wire or multi-wire, BS 6360 cl.1 or cl.2, IEC 60228 cl.1 or cl.2

    • Core insulation of cross-linked polyethylene, compound type 2XI1 to DIN VDE 0276 part 604
    • Core identification to DIN VDE 0293-308 and 0276 part 604
    • Overall core covering, halogen-free filling compound, pressed
    • Outer sheath of thermoplastic halogen-free polyolefine, flame retardant
    • Sheath colour orange

    Tests

    • Flame test acc. to

    DIN VDE 0482-332-3, BS 4066 part 3,

    DIN EN 60332-3, IEC 60332-3 (previously

    DIN VDE 0472 part 804 test method C)

    • Corrosiveness of combustion gases acc. to DIN VDE 0482 part 267,

    DIN EN 50267-2-2, IEC 60754-2

    (equivalent DIN VDE 0472 part 813)

    • Halogen-free acc. to DIN VDE 0482

    part 267, DIN EN 50267-2-1, IEC 60754-1

    (equivalent DIN VDE 0472 part 815)

    • Smoke density acc. to DIN VDE 0482 part 1034-1+2, DIN EN 61034-1+2,

    IEC 61034-1+2, BS 7622 part 1+2

    (previously DIN VDE 0472 part 816)


    Properties

    • Halogen free, no separation of corrosive and toxic gases
    • Flame retardant and hardly flammable
    • Self-extinguished and fire resistant
    • No flame propagation, therefore security from fire
    • low smoke density, low impairment of escape routes and fire extinguishing activities
    • Maintenance of functionality during the increased current load
    • FE 180: Insulation integrity for 180 minutes. Tests acc.to DIN VDE 0472 part 814 ฬ IEC 60331.

    Insulation integrity under direct flame propagation for the test period of 180 minutes.

    • E 30: Functionality of electrical cable systems for minimum 30 minutes. Test to DIN 4102 part 12. This fulfils the demands of technical guide lines for fire protection (supplement 1 to DIN VDE 0108 part 1). The functionality for 30 minutes assures when persons and animals are to be saved from a burning building. 30 minutes secures the functional performance of the fire warning and alarm systems, safety and spare lighting, passenger lifts with evacuation circuits, except the cables which are installed within the ladder shafts and engine rooms.

    Note

    • re = round conductor, single-wire rm = round conductor, multi-wire
    • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
    • LS0H = Low Smoke Zero Halogen

    Application

    Everywhere, where in case of fire human life and material assets are to be protected and safety conciousness take a special significance, e. g. in industrial complexes, power stations, communal establishment, hotels, airports, underground railway networks, hospitals and outpatients clinic (DIN VDE 0107), department stores, data processing centres, theaters, cinemas, in multi-storey buildings, public gatherings, schools etc. (DIN VDE 0108), mining works, offshore plants, leading centres, traffic communication, emergency power supply and alarm systems. Suitable for fixed installation in dry and moist rooms, in, above, on and beneath plaster as well as in masonary walls and in concrete. These cables are suitable for outdoor applications and in underground by using in conduits or tubes. For the installation in conduit all precautions must be taken that no accumulation of water can occur in the pipes.

    CE= The product is conformed with the EC Low-Voltage Directive 2006/95/EC.


    Part no.No.cores x cross-sec. mm²Outer Ø app. mmCop. weight kg / km

    Weight

    app. kg / km

    AWG-No.
    521043 x 2,5 / 2,5 re14,0104,0270,014
    521053 x 4 / 4 re15,5161,0360,012
    521063 x 6 / 6 re16,5240,0470,010
    521073 x 10 / 10 re18,5408,0680,08
    521083 x 16 / 16 re21,0643,0960,06
    521093 x 25 / 16 rm25,5902,01390,04
    521103 x 35 / 16 rm29,01190,01720,02
    521113 x 50 / 25 rm31,51723,02320,01
    521123 x 70 / 35 rm36,52410,03260,02/0
    521133 x 95 / 50 rm40,03296,04310,03/0
    521143 x 120 / 70 rm46,04236,05520,04/0
    521153 x 150 / 70 rm50,55100,06620,0300 kcmil

    Part no. No.cores x

    cross-sec. mm²

    Outer Ø app. mmCop. weight kg / km

    Weight

    app. kg / km

    AWG-No.
    52120 4 x 4 / 4 re17,0200,0420,012
    52121 4 x 6 / 6 re18,0297,0540,010
    52122 4 x 10 / 10 re20,0504,0800,08
    52123 4 x 16 / 16 re22,5796,01150,06
    52124 4 x 25 / 16 rm28,01142,01670,04
    52125 4 x 35 / 16 rm30,51526,02160,02
    52126 4 x 50 / 25 rm32,02203,02860,01
    52127 4 x 70 / 35 rm39,53082,03980,02/0
    52128 4 x 95 / 50 rm43,54208,05300,03/0
    52129 4 x 120 / 70 rm49,55388,06740,04/0
    52130 4 x 150 / 70 rm55,56558,08210,0300 kcmil
