    High Mechanical Stress Rubber Electrical Cable Polychloroprene Outer Sheath

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    High Mechanical Stress Rubber Electrical Cable Polychloroprene Outer Sheath

    High Mechanical Stress Rubber Electrical Cable Polychloroprene Outer Sheath


    Application:

    These cables are suitable for extreme mechanical stress in dry and humid locations and outdoor use for connections of heavy equipment. For mines and industrial use.

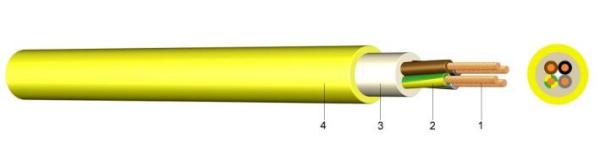

    Construction:

    1 ..... fine-stranded tinned copper
    2 ..... EPR rubber insulation (ethylen-propylen polymer)
    3 ..... rubber inner sheath
    4 ..... outer sheath of polychloroprene (CR), yellow, abrasion and oil resistant,flame retardant

    Standards:

    DIN VDE 0250-812
    DIN EN 60228 class 5 (construction)
    HD 308 S2 (core identification)

    Technical data:


    Nominal voltage Uo/U[V]600 / 1000 volt
    Test voltage[V]AC4000
    Temperature rangein motion-25°C till +80°C
    Operating temperatureshort circuit°C250
    Short circuit timemax.[sec]5
    Bending radiusone time / fixedx diameter4
    in motionx diameter10
    Oil-resistantstandardEN 60811-2-1
    FlammabilitystandardEN 60332-1-2

    Number of cores and
    nominal cross section

    mm2
    Copper
    figure

    kg/km
    Cond.
    construction
    (appr. value)
    mm
    Overall
    diameter
    appr.
    mm
    Weight

    appr.
    kg/km
    1 x 25250,0200 x 0,4112,9350,0
    1 x 35350,0280 x 0,4113,6446,0
    1 x 50500,0400 x 0,4116,0618,0
    1 x 70700,0356 x 0,5118,2838,0
    1 x 95950,0485 x 0,5120,71.082,0
    1 x 1201.200,0614 x 0,5122,41.350,0
    1 x 1501.500,0765 x 0,5124,61.660,0
    1 x 1851.850,0944 x 0,5128,32.067,0
    1 x 2402.400,01225 x 0,5130,22.621,0
    3 x 1,545,030 x 0,2611,5184,0
    3 x 2,575,050 x 0,2612,9245,0
    3 x 70/352.450,0356 x 0,5142,23.775,0
    3 x 95/503.350,0485 x 0,5150,25.116,0
    3 x 120/704.300,0614 x 0,5055,06.388,0
    4 x 1,560,030 x 0,2612,2213,0
    4 x 2,5100,050 x 0,2615,1328,0
    4 x 4160,056 x 0,3116,7423,0
    4 x 6240,084 x 0,3118,1530,0
    4 x 10400,080 x 0,4122,3832,0
    4 x 16640,0128 x 0,4126,31.198,0
    4 x 251.000,0200 x 0,4131,51.771,0
    4 x 351.400,0280 x 0,4133,22.196,0
    4 x 502.000,0400 x 0,4140,43.160,0
    4 x 702.800,0356 x 0,5144,84.115,0
    4 x 953.800,0485 x 0,5152,65.516,0
    4 x 1204.800,0614 x 0,5157,06.815,0
    5 x 1,575,030 x 0,2613,1249,0
    5 x 2,5125,050x 0,2616,1384,0
    5 x 4200,056 x 0,3117,9501,0
    5 x 6300,084 x 0,3120,3672,0
    5 x 10500,080 x 0,4124,21.001,0
    5 x 16800,0128 x 0,4128,41.445,0
    5 x 251.250,0200 x 0,4134,12.140,0
    5 x 351.750,0280 x 0,4137,42.791,0
    7 x 1,5105,030 x 0,2616,1370,0
    7 x 2,5175,050 x 0,2618,3504,0
    10 x 1,5150,030 x 0,2619,0490,0
    12 x 2,5300,050 x 0,2622,3733,0
    18 x 2,5450,050 x 0,2626,41.055,0
