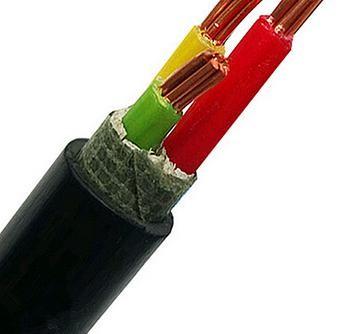

    Multi Core Fire Proof Low Smoke Zero Halogen Cable 318B LSZH / H05Z1Z1 F

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Delivery Time : 10 day
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    • Product Details
    • Company Profile

    Multi Core Fire Proof Low Smoke Zero Halogen Cable 318B LSZH / H05Z1Z1 F

    Multi Core Fire Proof Low Smoke Zero Halogen Cable 318B LSZH / H05Z1Z1 F


    The "Zero Halogen" element of LSZH cables

    Burning PVC and other cable compounds produce a number of chemicals, including hydrogen chloride (HCl), which is highly toxic. Furthermore, when mixed with water, HCl forms hydrochloric acid; a substance which is both toxic and corrosive. In the case of PVC, as much as 30% of the emissions can be HCl.

    BS EN 60754 stipulates that emissions of HCl by LSZH cables must not exceed 0.5%.


    APPLICATION

    Used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. For installation where fire, smoke emission and toxic fumes create a potential risk to life and equipment.


    CONSTRUCTION
    Conductor

    Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360)


    Insulation

    LSZH (Low Smoke Zero Halogen) Type TI6 according to BS EN 50363


    Sheath
    LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363


    STANDARDS

    BS EN 50525-3-11 (HD21.14), BS EN/IEC 60332-1-2


    We supply LPCB Certified products
    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed


    Voltage Rating (Uo/U)

    300/500V


    Temperature Rating
    +5°C to +70°C


    Minimum Bending Radius

    5 x overall diameter


    Core Identification
    2 core: Blue Brown
    3 core: Green/Yellow Blue Brown
    4 core: Green/Yellow Brown Black Grey
    5 core: Green/Yellow Brown Black Grey Blue


    Sheath Colour
    Red Black
