    LSZH Flame Retardant Cable Single Core Heat Resistant Cable BS 7846 SWA Armour

    LSZH Flame Retardant Cable Single Core Heat Resistant Cable BS 7846 SWA Armour


    APPLICATION
    Firetec Power is a fire resistant armoured cable suitable for use in fixed installations for power circuits, fire alarm systems and emergency lighting systems. It is robust, flexible and suitable for use inside and outside buildings, meeting the enhanced grade of BS 5839-1 26.2e

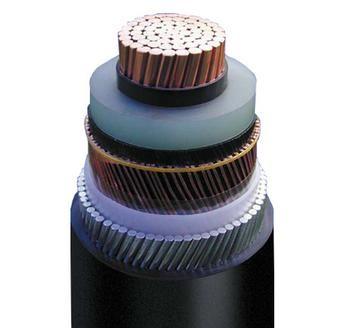

    CONSTRUCTION
    Conductor

    Class 2 stranded copper conductor to BS EN 60228 (previously BS 6360)


    Separator
    Mica/glass fire barrier tape


    Insulation
    XLPE (Cross-Linked Polyethylene)


    Bedding
    LSZH (Low Smoke Zero Halogen)


    Armour
    SWA (Steel Wire Armour)


    Sheath
    LSZH (Low Smoke Zero Halogen)


    STANDARDS
    BS 7846, BS 5266, BS 8434-2, BS 5839-1 26.2e, BS EN 50200 PH30, PH60, PH120, BS 6387 C W and Z, BS EN 50267, BS EN 50268, BS EN 50265 and 50266, BS EN/IEC 60332, BS EN/IEC 60754, BS EN/IEC 61034, LUL 1-085


    We supply LPCB Certified products
    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the Cables laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed


    CHARACTERISTICS
    Voltage Rating

    600/1000V


    Operating Temperature
    -10°C to +90


    Minimum Bending Radius
    Up to 25mm2: 6 x overall diameter
    Above 25mm2: 8 x overall diameter


    Core Identification

    2 cores: Blue Brown

    3 cores: Brown Black Grey

    4 cores: Blue Brown Black Grey

    5 core: Green/Yellow Blue Brown Black Grey
    (5 core also available with White numbered cores)


    Outer Sheath Colour
    Black
    Note: Cables above 4 core are not LUL approved
