    PVC Panel Electrical Transmission Lines , Switch Control Overhead Electric Lines

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    PVC Panel Electrical Transmission Lines , Switch Control Overhead Electric Lines

    PVC Panel Electrical Transmission Lines , Switch Control Overhead Electric Lines


    Electrical Transmission Lines Application


    PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

    Manufactured in accordance with European Harmonised Standard H05V-K and H07V-K, primarily used as flexible panel wire and is available in a wide range of different colours for this purpose. Designed for internal equipment wiring in switch control, relay and instrumentation panels of power switchgear, and for purposes such as internal connectors in rectifier equipment, motor starters and controllers, this flexible cable can be installed in open air, in conduits, or in trunking.


    Electrical Transmission Lines Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Electrical Transmission Lines Construction


    Conductor
    Class 5 flexible copper conductor according to
    BS EN 60228

    Insulation
    PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363


    Characteristics


    Voltage Rating (Uo/U)
    H05V-K: 300/500V
    H07V-K: 450/750V

    Temperature Rating
    Fixed: -30°C to +70°C
    Flexed: -5°C to +70°C

    Minimum Bending Radius
    <12: 5 x overall diameter
    >12: 6 x overall diameter

    Sheath Colour
    Red, Black, Blue, Orange, Yellow, White, Green/Yellow, Grey, Brown, Violet, Pink

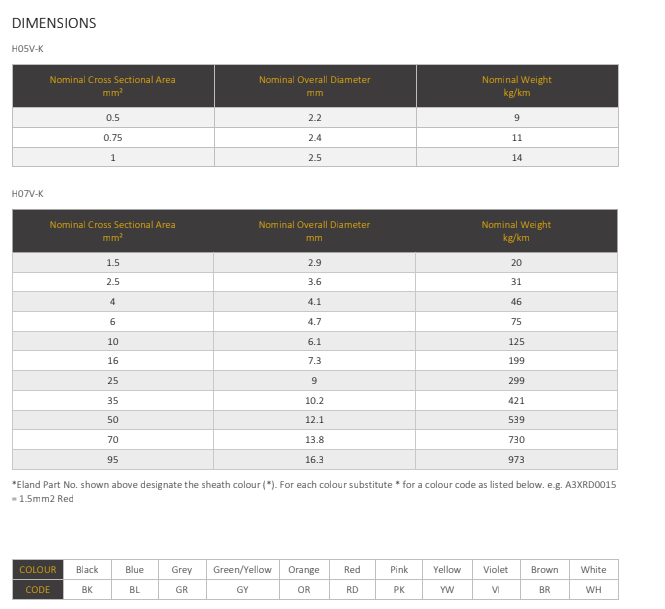

    Size, Weight & Electrical Specification
