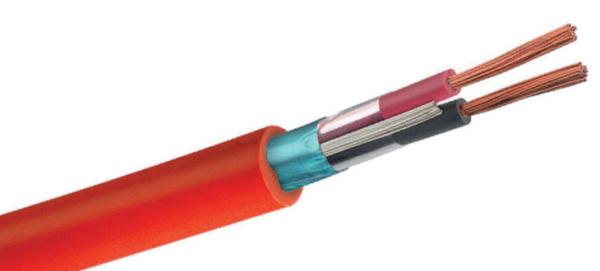

    EN/IEC 60332-1 Low Voltage Electrical Wire , Copper LV Power Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    EN/IEC 60332-1 Low Voltage Electrical Wire , Copper LV Power Cable

    EN/IEC 60332-1 Low Voltage Electrical Wire , Copper LV Power Cable


    Low Voltage Electrical Wire Application


    Low Voltage Electrical Wire Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient tempera


    Low Voltage Electrical WireStandards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Low Voltage Electrical Wire Construction


    Conductor
    Class 2 stranded aluminium conductor

    Insulation
    XLPE (Cross-Linked Polyethylene)

    Filler
    PVC (Polyvinyl Chloride)

    Armour
    Galvanized round steel wire

    Sheath
    PVC (Polyvinyl Chloride)


    Low Voltage Electrical Wire Characteristics


    Voltage Rating (Uo/U)
    600/1000V

    Test Voltage
    3.5kV

    Minimum Bending Radius
    15 x overall diameter

    Maximum Operating Temperature
    +90°C

    Maximum Short Circuit Temperature
    +250°C

    Sheath Colour
    Black

    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

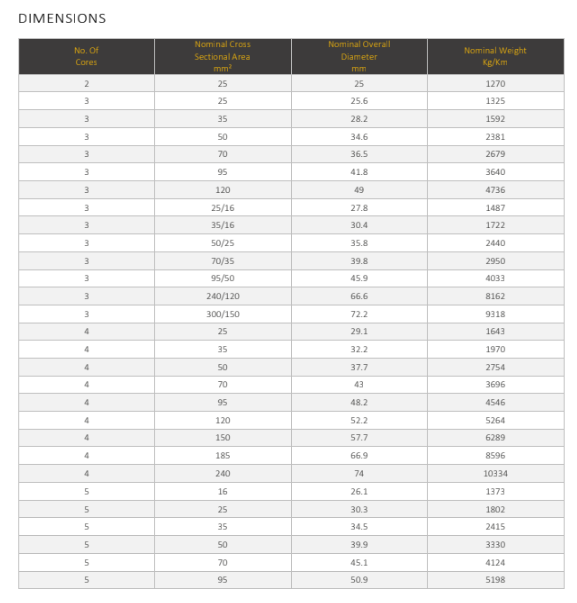

    Size, Weight & Electrical Specification
