    BS 5467 Single Core Power Cable / Auxiliary Control XLPE Armoured Cable

    BS 5467 Single Core Power Cable / Auxiliary Control Xlpe Armoured Cable


    Single Core Power Cable Application


    Single core PVC cable with aluminium wire armour (AWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.


    Single Core Power Cable Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

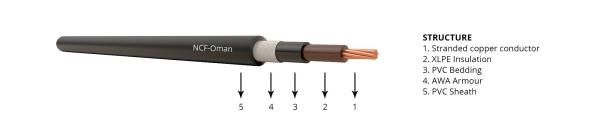

    Single Core Power Cable Construction


    Conductor
    Class 2 stranded copper conductor according to BS EN 60228

    Insulation
    XLPE (Cross-Linked Polyethylene)

    Bedding
    PVC (Polyvinyl Chloride)

    Armour
    AWA (Aluminium Wire Armour)

    Sheath
    PVC (Polyvinyl Chloride)


    Single Core Power Cable Characteristics


    Voltage Rating (Uo/U)
    600/1000V

    Test Voltage
    3.5kV

    Minimum Bending Radius
    15 x overall diameter

    Maximum Operating Temperature
    +90°C

    Maximum Short Circuit Temperature
    +250°C

    Sheath Colour
    Black


    Size, Weight & Electrical Specification
