    Radios Insulated Solid Copper Wire / Multi Cores Copper Electrical Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    Model Number : Insulated Solid Copper Wire
    • Product Details
    • Company Profile

    Radios Insulated Solid Copper Wire / Multi Cores Copper Electrical Cable

    Radios Insulated Solid Copper Wire / Multi Cores Copper Electrical Cable


    Insulated Solid Copper Wire Application


    Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment.


    Insulated Solid Copper Wire Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Insulated Solid Copper Wire Construction


    Conductor
    Class 5 flexible copper conductor according to BS EN 60228

    Insulation
    PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363

    Sheath
    PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363


    Insulated Solid Copper Wire Characteristics


    Voltage Rating (Uo/U)
    300/300V

    Temperature Rating
    Flexed: +5°C to +70°C

    Minimum Bending Radius
    Flexed: 6 x overall diameter

    Core Identification
    2 core: Blue Brown
    3 core: Blue Brown Green/Yellow

    Sheath Colour
    White Black

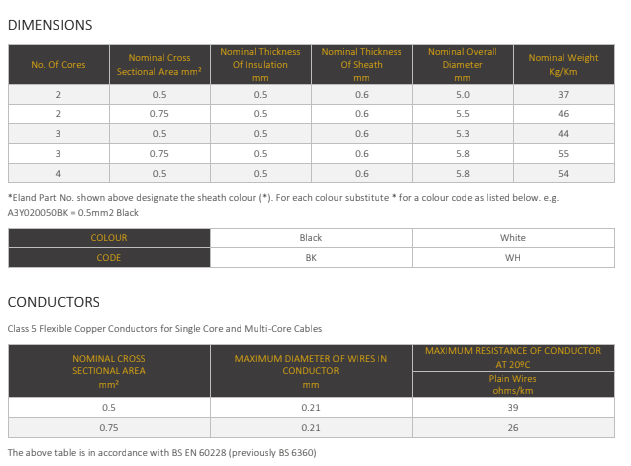

    Size, Weight & Electrical Specification
