    Customized Size Low Smoke Zero Halogen Cable For Public And Government Buildings

    Customized Size Low Smoke Zero Halogen Cable For Public And Government Buildings


    Low Smoke Zero Halogen Cable Application


    LSZH panel wiring for appliances with maximum operating temperatures of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gases when burnt which is particularly important where electronic equipment is installed.


    Cable Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.


    Low Smoke Zero Halogen Cable Construction


    Conductor
    Class 5 flexible copper conductor

    Insulation
    LSZH (Low Smoke Zero Halogen) Type EI5 thermosetting insulation


    Low Smoke Zero Halogen Cable Characteristics


    Voltage Rating (Uo/U)
    H05Z-K – 0.5mm2 to 1mm2: 300/500V
    H07Z-K – 1.5mm2 to 240mm2: 450/750V

    Temperature Rating
    -25°C to +90°C

    Minimum Bending Radius
    Up to 35mm2: 4 x overall diameter
    50mm2 and above: 6 x overall diameter

    Insulation Colour
    Red, Black, Blue, Orange, White, Yellow
    Green/Yellow, Grey, Brown, Violet, Pink

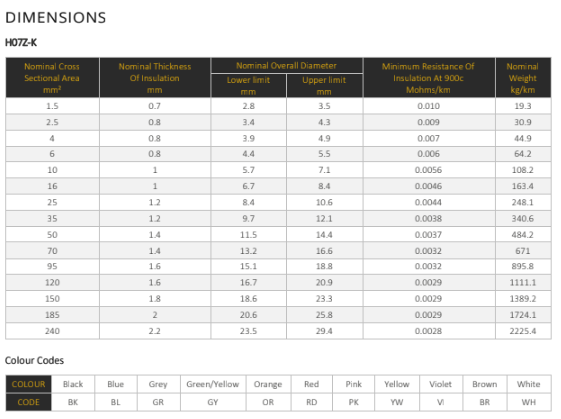

    Size, Weight & Electrical Specification
