    Controlling Low Smoke Zero Halogen Cable With Flexible Copper Conductor

    Controlling Low Smoke Zero Halogen Cable With Flexible Copper Conductor


    Low Smoke Zero Halogen Cable Application


    For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use in conditions of light mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or moist conditions indoors.

    YY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.


    Low Smoke Zero Halogen Cable Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

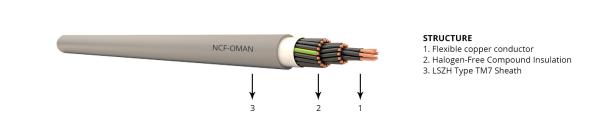

    Low Smoke Zero Halogen Cable Construction


    Conductor
    Class 5 flexible copper conductor

    Insulation
    Halogen-Free Compound Type TI6

    Sheath
    LSZH (Low Smoke Zero Halogen) Type TM7


    Low Smoke Zero Halogen Cable Characteristics


    Voltage Rating (Uo/U)
    300/500V

    Temperature Rating
    Fixed: -40°C to +70ºC
    Flexed: -15°C to +70ºC

    Minimum Bending Radius
    Fixed: 4 x overall diameter
    Flexed: 10 x overall diameter

    Core Identification
    Black with White numbers
    (3 core and above includes Green/Yellow)

    Coloured cores:
    2 core: Blue, Brown
    3 core: Green/Yellow, Blue, Brown
    4 core: Green/Yellow, Brown, Black, Grey
    5 core: Green/Yellow, Brown, Black, Grey, Blue

    Sheath Colour
    Grey


    Size, Weight & Electrical Specification
