Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724

    Buy cheap Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724 from wholesalers

    Buy cheap Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724 from wholesalers
    • Buy cheap Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724 from wholesalers

    Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724

    Ask Lasest Price
    Brand Name : SUNWIN
    Certification : ISO9001, ISO14001, OHSAS18001
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724

    Single Core LSZH Power Cables , Aluminium Armoured Cable 0.6/1kV BS 6724


    LSZH Power Cables Application


    Single core LSZH cable with aluminium wire armour (AWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.


    LSZH Power Cables Standards


    The electrical and dimensional properties of this product are measured by the Technical and Quality Assurance department at the National Cable Factory laboratory. Cable performance in respect of conductor resistance, construction quality (workmanship), dimensional consistency, and other parameters are verified to published standards and approved product drawings. Conformance to RoHS (Restriction of the use of Hazardous Substances) is determined and confirmed.

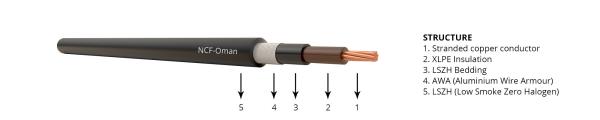

    LSZH Power Cables Construction


    Conductor
    Class 2 stranded copper conductor

    Insulation
    XLPE (Cross-Linked Polyethylene) Type GP8

    Bedding
    LSZH (Low Smoke Zero Halogen) Type LTS1

    Armour
    AWA (Aluminium Wire Armour)

    Sheath
    LSZH (Low Smoke Zero Halogen) Type LTS1


    LSZH Power Cables Characteristics


    Voltage Rating (Uo/U)
    600/1000V

    Temperature Rating
    Fixed installation: -20°C to +90°C

    Minimum Bending Radius
    1.5mm2 to 16mm2 – Fixed: 6 x overall diameter
    25mm2 and above – Fixed: 8 x overall diameter

    Core Identification
    1 core: Brown

    Sheath Colour
    Black


    Size, Weight & Electrical Specification
