    Fully Annealed Welding Power Cable / Colorful Heavy Duty Welding Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : LV XLPE Power Cable
    Certification : IEC 60245,ASTM B-172
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Fully Annealed Welding Power Cable / Colorful Heavy Duty Welding Cable

    Welding Cable,Welding Wire


    Welding Cable (Welding Wire) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    Welding Wire / Welding Cables Construction:

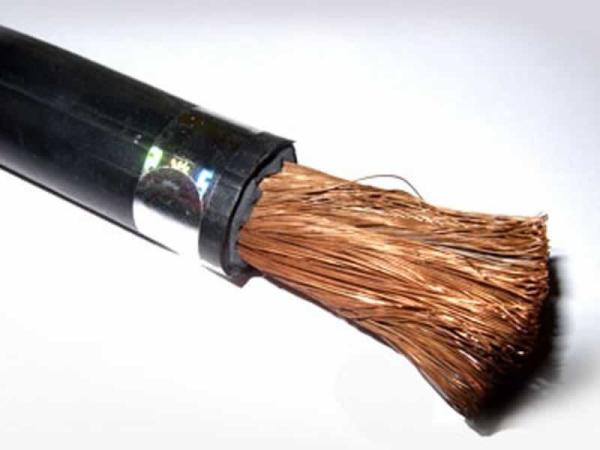

    Conductor: Fully annealed stranded bare copper per ASTM B-172.
    Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)

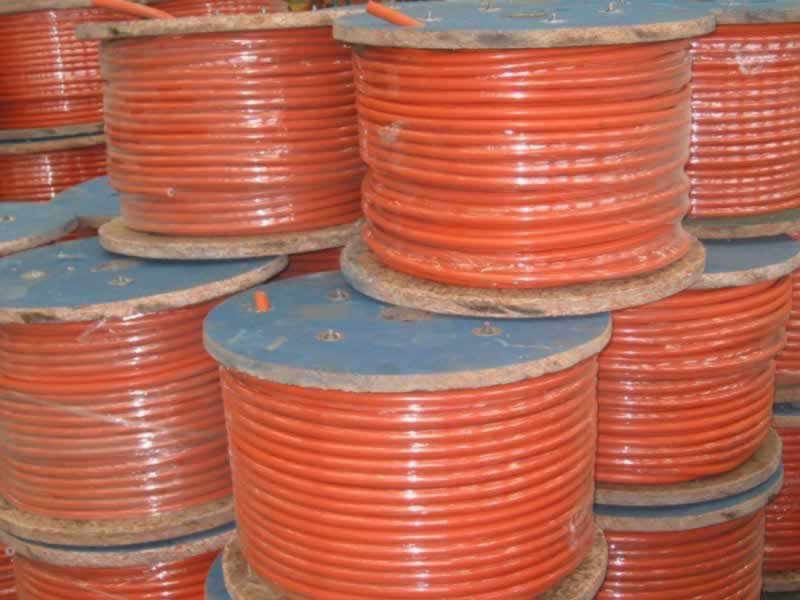

    Additional Jacket Colors: Also available in orange, yellow, blue or green


    Weld Wire Applications:


    1). Secondary voltage resistance welding leads.
    2). Power supply applications not exceeding 600 volts A.C.
    3). Battery Cable
    4). Welding


    Weld Wire Features:


    1). Weld Wire is resistant to cuts, tears and abrasion in addition to moisture.
    2). Welding Wire offers good color retention along with great flexibility.
    3). Welding Wire / Welding Cable Options:
    4). Zero Halogen EP Jacket
    5). UL 600V CPE 90°C
    6). CSA Approved Welding Wire
    7). Featuring stranded bare copper and available in sizes 6 AWG up to 500 MCM, welding cable is rated to 600V rms max and suitable for us from -50°C to 105°C.


    Main Technical Date; Welding Cables to IEC 60245 standard :


    Nominal section area(mm2)No./diameter of stranding(mm)Nominal sheath thickness (mm)Overall diameter(mm)Max. conductor resistance at 20℃(Ω/km)
    Min.Max.Without tinnedWith tinned
    10322/0.201.87.59.71.911.95
    16513/0.202.09.211.51.161.19
    25798/0.202.010.513.00.7580.780
    351121/0.202.011.514.50.5360.552
    501596/0.202.213.517.00.3790.390
    702214/0.202.415.019.50.2680.276
    952297/0.202.617.022.00.1980.204
    1201702/0.302.819.024.00.1610.164
    1502135/0.303.021.027.00.1290.132
    1851443/0.403.222.029.00.1060.108
    2401908/0.403.825.035.00.08010.0817


    Welding Cables to ASTM Standard :


    Size (AWG)Nominal strandingNominal overall diameterApprox. net weight (LBS/1000ft)Max. conductor resistance at 20℃(Ω/km)
    AWGmminchmm
    6259/30259/0.2540.43010.921521.33
    4418/30418/0.2540.47512.072150.84
    2646/30646/0.2540.54013.722960.53
    1836/30836/0.2540.58014.733600.42
    1/01032/301032/0.2540.61515.624240.33
    2/01290/301290/0.2540.65516.645130.26
    3/01672/301672/0.2540.72018.296440.21
    4/02066/302066/0.2540.78019.818240.17
