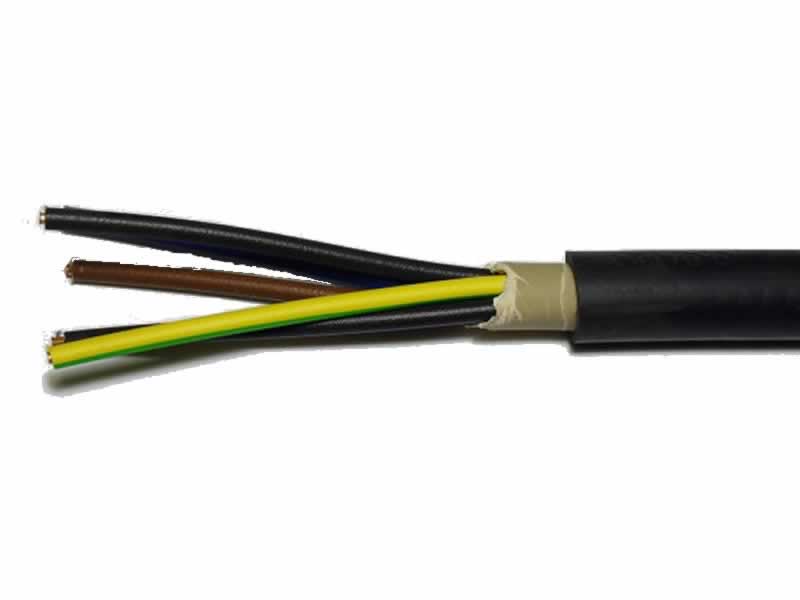

    Construction Copper Low Voltage Power Cable With PVC Insulation PVC Sheath

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : Low Voltage Power Cable
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

    Construction Copper Low Voltage Power Cable With PVC Insulation PVC Sheath

    NYY,NYY-J,NYY-O,Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV)]


    NYY,NYY-J,NYY-O (Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV)) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    Application :


    Kabel NYY is used as a power cable for energy supply in static installations, indoors, outdoors, underground, in concrete and in water where mechanical damages are not to be expected. The use of NYY cables is in accordance with VDE 0298 part 1. The current capacity is according to HD 603 S.1 and VDE 0276 part 1000. The product conforms to EEC directive 73/23 (Low Voltage Directive). CE certificated type cables.


    NYY cable Construction:


    Conductor:Bare Copper wire conductor
    Re: circular solid, single core
    Rm: circular stranded, multi wire
    Sm: sectorial stranded,
    Insulation:PVC
    Bedding:PVC
    Sheath:PVC sheath, black
    Cores:Colour coded to VDE0293
    Voltage Rating:0.6/1kV
    Bending Radius for Single Core:Minimum:15 x Ø
    Bending Radius for Multi Core:Minimum:12 x Ø
    O = No protective earth – NYY-O
    Single core: Black
    Two core: Brown and Blue
    J = green/yellow protective earth – NYY-J
    Three core: Brown, Blue and Green / Yellow
    Four core: Black, Grey, Brown and Green / Yellow
    Five core: Black, Blue. Brown, Grey and Green / Yellow
    Seven – Forty cores: Black cores, numbered and Green / Yellow


    Specification Sheet of NYY Kablo:

    Number of cores and mm² per conductorOuter diameter (mm)Copper index (kg/km)Weight (kg/km)
    NYY-J cable
    1 x 25rm13.0240.0380
    1 x 35rm14.0336.0447
    1 x 50rm15.0480.0650
    1 x 70rm17.0672.0864
    1 x 185rm25.01776.02080
    3 x 1,5re12.043.0223
    4 x 1,5re13.058.0256
    5 x 1,5re14.072.0293
    7 x 1,5re15.0101.0360
    10 x 1,5re18.0144.0520
    12 x 1,5re19.0173.0560
    14 x 1,5re20.0202.0620
    16 x 1,5re21.0230.0680
    19 x 1,5re22.0274.0760
    24 x 1,5re24.0346.0900
    30 x 1,5re26.0432.01100
    3 x 2,5re13.072.0272
    4 x 2,5re14.096.0316
    5 x 2,5re15.0120.0323
    7 x 2,5re16.0168.0450
    10 x 2,5re20.0240.0630
    12 x 2,5re20.0288.0680
    14 x 2,5re21.0336.0790
    19 x 2,5re23.0456.0990
    24 x 2,5re26.0576.01300
    30 x 2,5re28.0720.01400
    3 x 4re15.0115.0373
    4 x 4re16.0154.0439
    5 x 4re17.0192.0510
    3 x 6re16.0173.0466
    4 x 6re17.0230.0547
    5 x 6re19.0288.0640
    3 x 10re18.0288.0629
    4 x 10re19.0384.0743
    5 x 10re21.0480.0899
    3 x 16re20.0461.0850
    4 x 16re22.0614.01039
    5 x 16re23.0768.01240
    3 x 25rm/16re25.0874.01595
    4 x 25rm27.0960.01620
    3 x 35sm/16re27.01162.01718
    4 x 35sm27.01344.01916
    3 x 50sm/25rm31.01680.02383
    4 x 50sm31.01920.02639
    3 x 70sm/35sm33.02352.03196
    4 x 70sm35.02688.03576
    3 x 95sm/50sm38.03216.04271
    4 x 95sm40.03648.04746
    3 x 120sm/70sm41.04128.05281
    4 x 120sm43.04608.05813
    3 x 150sm/70sm46.04992.06408
    4 x 150sm48.05760.07263
    3 x 185sm/95sm50.06240.07909
    4 x 185sm53.07104.08905
    3 x 240sm/120sm57.08064.010162
    4 x 240sm60.09216.011430
    NYY-O cable
    1 x 10re10.096.0176
    1 x 16re11.0154.0239
    1 x 25rm13.0240.0380
    1 x 35rm14.0336.0447
    1 x 50rm15.0480.0650
    1 x 70rm17.0672.0864
    1 x 95rm19.0912.01132
    1 x 120rm21.01152.01405
    1 x 150rm22.01440.01710
    1 x 185rm25.01776.02080
    1 x 240rm27.02304.02669
    1 x 300rm30.02880.03305
    1 x 500rm39.04800.05400
    2 x 1,5re11.029.0210
    2 x 2,5re12.048.0250
    2 x 4re14.077.0360
    2 x 6re15.0115.0400
    2 x 10re17.0192.0500
    4 x 16re22.0614.01039
    4 x 25rm27.0960.01620
    4 x 50sm31.01920.02639
    4 x 70sm35.02688.03576
    4 x 95sm40.03648.04746

    Remark :


    1)Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon request.
    2)Please specify the preferred type of packaging (e.g. 1 x 500 m drum or 5 x 100 m coils).

    Low Voltage Copper PVC Insulation PVC sheath Power Cable (0.6/1KV),NYY,NYY-J,NYY-O specifications(data sheet,table,full form)
