    OEM Service Insulated Electrical Wire With Low Mechanical Stress H03VV-F

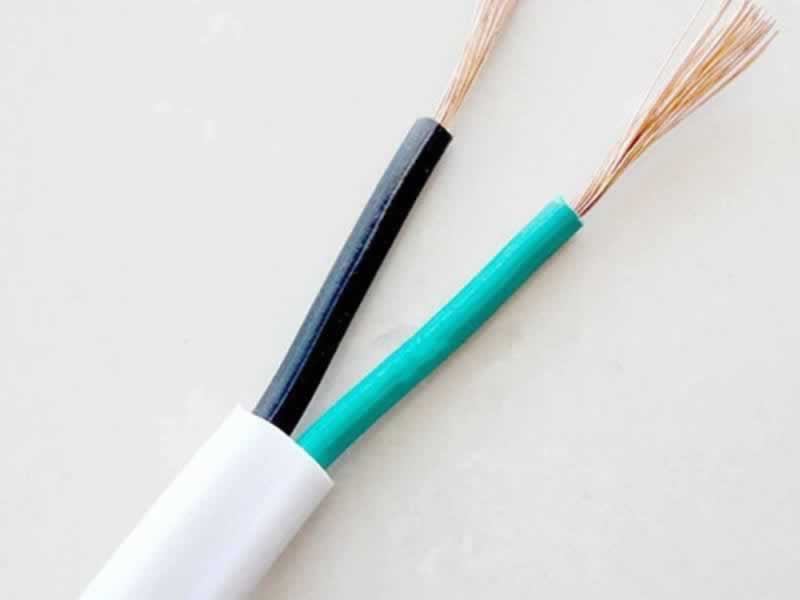

    H03VV-F,H03VVH2-F,300V Copper Round/Flat PVC Insulated PVC Sheathed Cable


    H03VV-F,H03VVH2-F (300V Copper Round/Flat PVC Insulated PVC Sheathed Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

    Application:


    H03VV-F/H03VVH2-F is round/flat PVC insulated PVC sheathed cable for connecting electric appliances, devices and instruments i.e. table lamp and radio to the power supply network.


    Description :


    kabel H03VV-F / H03VVH2-F cable are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, offices;for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators). As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.


    Construction :


    ConductorBare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
    InsulationPVC core insulation to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding (3 conductors and above)
    SheathPVC outer jacket

    H03VV-F Cable 300/300V Technical Data:


    Rated voltage Uo/U300/300V
    Test voltage2000V
    minimum bending radiusmobile : 15D;
    fixed :4D
    (D – diameter or height of cable)
    minimum temperature during installation– 5 °C
    temperature of environmentmobile: – 5 °C to
    +50 °C; fixed: -30 °C to +50 °C
    max. conductor temperature at short circuit for 5 s160°C
    maximum conductor temperature+70°C
    Insulation resistance at 70 °Cmin 2 x 1010 Ω.cm
    flame testflame-retardant acc. to IEC 60332-1

    H03VV-F / H03VVH2-F date sheet :


    AWGNo. of Cores x Nominal Cross Sectional Area # x mm²Nominal Overall Diameter mmNominal Copper Weight kg/KmNominal Weight kg/KmNominal Copper Weight kg/KmNominal Weight kg/Km
    H03VV-F
    20(16/32)2 x 0.500.50.659.638
    20(16/32)3 x 0.500.50.65.414.445
    20(16/32)4 x 0.500.50.65.819.255
    18(24/32)2 x 0.750.50.65.514.446
    18(24/32)3 x 0.750.50.6621.659
    18(24/32)4 x 0.750.50.66.528.872
    18(24/32)5 x 0.750.50.67.136.087
    kable H03VVH2-F
    20(16/32)2 x 0.500.50.63.2 x 5.29.732
    18(24/32)2 x 0.750.50.63.4 x 5.614.435
