    Flame Retardant Insulated Copper Cable / XLPE Insulation Multi Core Copper Cable

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : Insulated Copper Cable
    Supply Ability : 10000 Meter/Meters per Day
    Price : $1.00 - $100.00 / Miles
    • Product Details
    • Company Profile

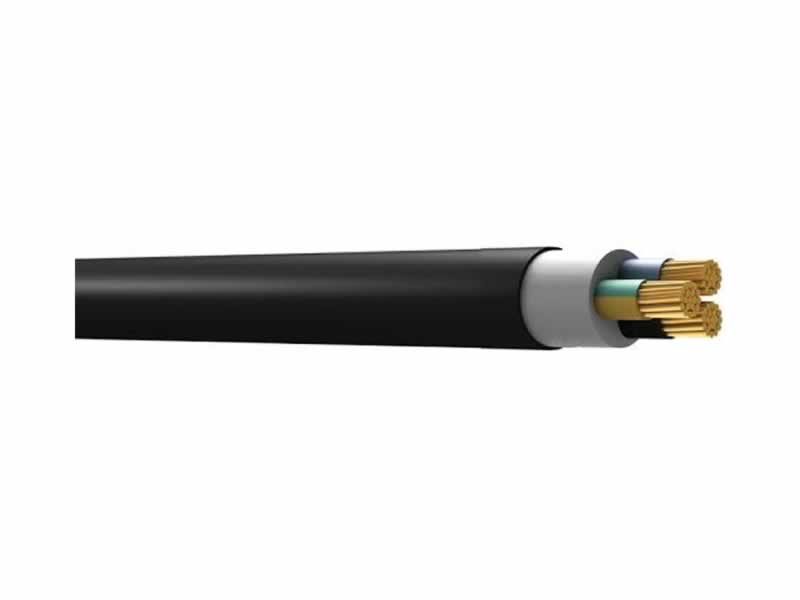

    Flame Retardant Insulated Copper Cable / XLPE Insulation Multi Core Copper Cable

    N2XY,N2XY-J,N2XY-O,0.6/1Kv Copper XLPE Insulation PVC Sheath Power and Control Cable, Flame Retardant


    N2XY,N2XY-J,N2XY-O (0.6/1Kv Copper XLPE Insulation PVC Sheath Power and Control Cable, Flame Retardant) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    Kabel N2XY Application:


    XLPE insulated and PVC sheathed power and auxiliary control cables for the supply of electrical energy. Special for installations in the open air, in underground and water, indoors, in cable ducts.


    Construction:


    Conductors: annealed copper solid class 1(RE), circular or circular compacted stranded conductor class 2 (RM), stranded sector – shaped conductor class 2 (SM) acc. to EN 60228
    Insulation: special XLPE compound type DIX3 acc.
    Inner covering: filling compound
    Sheath: flame retardant special PVC compound
    Standard length cable packing: 1000m on drums. Other forms of packing and delivery are available on request.

    Technical Characteristics:
    - Working voltage: 600/1000 volts
    - Test voltage: 4000 volts
    - Minimum bending radius: 15 x Ø
    - Flexing temperature: -5º C to +70º C
    - Fixed installation temperature: - 30º C to +70º C
    - Short circuit temperature: +250º C
    - Flame retardant: IEC 60332.1
    - Insulation resistance: >20 MΩ x km.

    Technical Parameter of N2XY Cable :


    Dimensions – number of cores x conductor cross-sectionConstructionConstruction of individual conductorExternal diameterInsulation thicknessSheath thicknessConductor resistance at 20 °CShort circuit current 1sCu weightCable weightPacking*
    nominalapprox.nominalnominalmax.nominalprib.
    N x mm²n x mmmmmmmmΩ/kmkAkg/kmkg/km
    Power cable N2XY-J, N2XY-O
    1 x 4RE1 x 2,2580,71,84,610,4638,472CUT
    1 x 6RE1 x 2,768,50,71,83,080,6957,692CUT
    1 x 10RE1 x 3,569,50,71,81,831,1596142CUT
    1 x 16RE1 x 4,5111,70,71,81,151,84153,6205CUT
    1 x 25RM7 x 2,13130,91,80,7272,87240303CUT
    1 x 35RM7 x 2,52140,91,80,5244,02336394CUT
    1 x 50RM19 x 1,831611,80,3875,75480516CUT
    1 x 70RM19 x 2,17171,11,80,2688,05672721CUT
    1 x 95RM19 x 2,52191,11,80,19310,9912992CUT
    1 x 120RM37 x 2,03211,21,80,15313,811521196CUT
    1 x 150RM37 x 2,2723,31,41,80,12417,214401509CUT
    1 x 185RM37 x 2,5225,31,61,80,099121,317761850CUT
    1 x 240RM61 x 2,2428,31,71,80,075427,623042394CUT
    1 x 300RM61 x 2,5030,31,81,90,060134,528802964CUT
    1 x 400RM61 x 2,8934,7220,04741,238403838CUT
    1 x 500RM61 x 3,23382,22,10,036651,548004863CUT
    1 x 630RM91 x 2,97432,42,20,02836460486285CUT
    2 x 1,5RE1 x 1,389,50,71,812,10,17328,8126CUT
    2 x 2,5RE1 x 1,7810,60,71,87,410,28848157CUT
    2 x 4RE1 x 2,2511,50,71,84,610,4676,8200CUT
    2 x 6RE1 x 2,7612,50,71,83,080,69115,2253CUT
    2 x 10RE1 x 3,5614,10,71,81,831,15192395CUT
    2 x 16RE1 x 4,5115,90,71,81,151,84307,2558CUT
    2 x 25RM7 x 2,1320,30,91,80,7272,87480811CUT
    2 x 35RM7 x 2,5222,20,91,80,5244,026721038CUT
    2 x 50RM2511,80,3875,75960CUT
    3 x 240SM61 x 2,24521,72,70,075427,669128211CUT

    *) Packing: CUT = cable in different lengths on drum or reel, possible cutting at required length.

    0.6/1Kv Copper XLPE Insulation PVC Sheath Power and Control Cable, Flame Retardant,N2XY,N2XY-J,N2XY-O specifications(data sheet,table,full form)
