Brand Name : | SUNWIN |
Model Number : | LV XLPE Power Cable |
Certification : | IEC 60754-1/BS6425-1,BS 6004 |
Price : | Negotiable |
Payment Terms : | 30% deposit, the balance is settled on the delivery date |
Supply Ability : | 100,000 m / month |
Delivery Time : | 10 day |

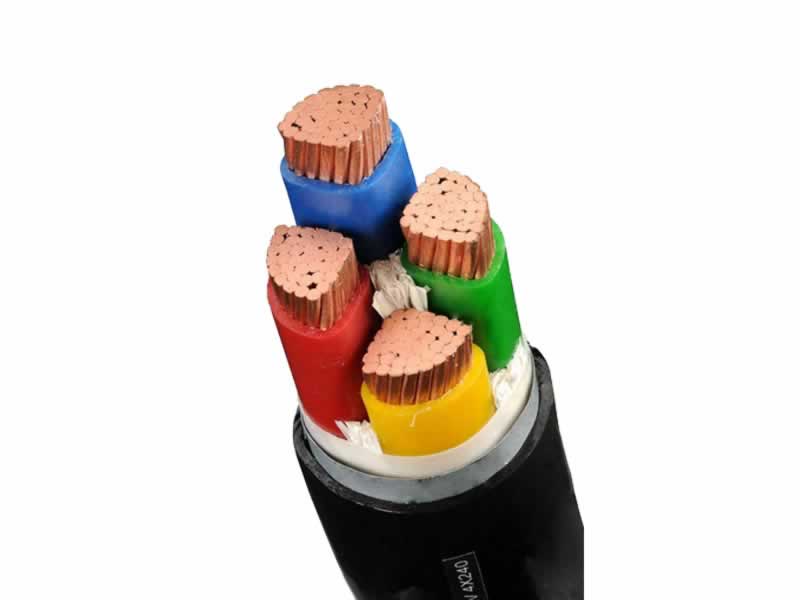

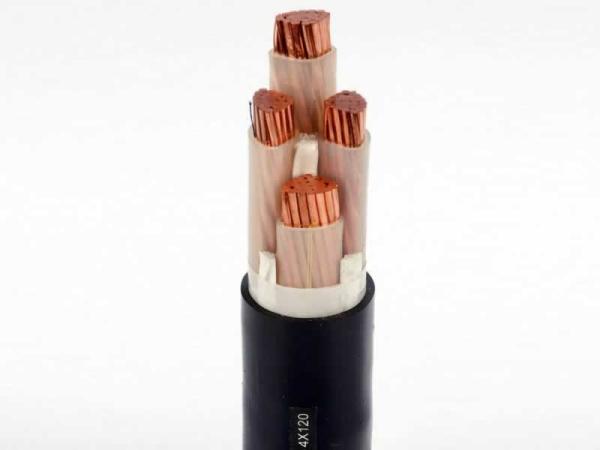

LSZH Cable,Low Smoke Zero Halogen Cable
LSZH Cable (Low Smoke Zero Halogen Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Low Smoke Zero Halogen Cable
Application:
Low smoke zero Halogen cable used in public and government
buildings and where there is sensitive electronic equipment (i.e.
Hospitals, Supermarkets, Airports, Control Rooms & Computer Suites)
these cables are designed for increased safety in the case of a
fire:Reduction in hazardous fumes which can cause injury when
inhaled; Reduction in corrosive chemicals which can cause damage to
electronics; Most cables used in installations have been insulated
with PVC or similar materials.XLPE Insulated halogen-free low smoke
cable may prevent human from being suffocated by toxic gas
generated from accidental burning of wire and cable.Such as
fire-resistant flame-retardant cable, do not catch fire easily and
do not spread the fire or give off toxic gas when on fire.They are
suitable for using in the circumstance with fairly strict flame
retardant and environmental protection requirement,such as
high-rise buildings,hospitals,subways and shopping malls.
Property:
1) The temperature of laying cable is not lower than 0oC.
2) Max. continuous normal operating Temperature: 90oC
3) Max. permissible temperature at short circuit (5s. at longest):
250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%
(D is the actual overall diameter of cable, and d is the actual
overall diameter of conductor).
LSZH Cables intended to fulfil this type of function are often
labelled as one of the following:
LSZH - Low Smoke Zero Halogen
LSOH - Low Smoke Zero Halogen
LSF - Low Smoke and Fume
OHLS - Zero Halogen Low Smoke
Both LSZH and LSF are used to limit smoke, fumes and halogen given
off in fire conditions.
Construction:
Conductor | Solid, Stranded Copper or Aluminum |
Insulation | XLPE |
Amouring | 1)Non-armoued 2)Steel tape armoured (STA) 3)Steel wire armoured(SWA) Aluminum wire armoured(AWA) |
Sheath | LSOH material |
![]() |
