Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC

    Buy cheap Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC from wholesalers

    Buy cheap Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC from wholesalers
    • Buy cheap Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC from wholesalers

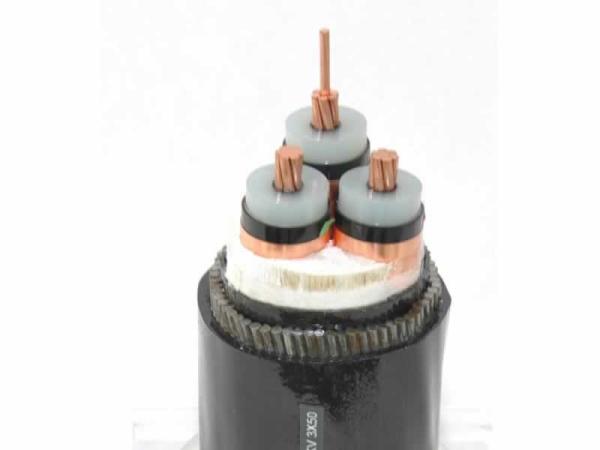

    Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : LV XLPE Power Cable
    Certification : IEC502-1983,IEC331-1970.AS/NZS3013,BS 6387
    Price : Negotiable
    Payment Terms : 30% deposit, the balance is settled on the delivery date
    Supply Ability : 100,000 m / month
    Delivery Time : 10 day
    • Product Details
    • Company Profile

    Low Smoke Flame Retardant Cable For Fire Situations Cu(Al)/XLPE/CTS(STA)/PVC

    Fire-resistant Cable,Fire-resistant Flame-retardant Cable


    Fire-resistant Cable (Fire-resistant Flame-retardant Cable) meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.


    Application:


    Fire resistant flame retardant cable sheaths are design to resist combustion and limit the propagation of flames.it is suitable for power transmission and distribution line with rated voltage 300/500V, 450/750V, 0.6/1kV.Due to relative low cost, fire retardant cables are widely used as fire survival cables.Fire resistant cables are often used to maintain circuit integrity of those vital life safety systems such as fire alarm and suppression services.


    Property:


    Fire resistant cables are designed to maintain circuit integrity of those vital emergency services during the fire. The individual conductors are wrapped with a layer of fire resisting mica/glass tape which prevents phase to phase and phase to earth contact even after the insulation has been burnt away. The fire resistant cables exhibit same performance even under fire with water spray or mechanical shock situation.


    Fire Rated Cables:


    1.Flame Retardant - designed for use in fire situations where the spread of flames along a cable route needs to be retarded.
    2.Fire Resistant (FR) - cables are designed to maintain circuit integrity of those vital emergency services during the fire.
    3.Low Smoke and Fume (LSF) - burns with very little smoke and fumes compared to standard PVC, fumes may contain halogens.
    4.Low Smoke Zero Halogen (LSZH) cable - when burns there is very little smoke and fumes (compared to standard PVC the fumes contain no halogens.
    5.Alternative names for LSZH - LSZO (Low Smoke Zero Halogen), 0HLS (Zero Halogen Low Smoke), LSHF (Low Smoke Halogen Free).

    Construction:


    ConductorClass 1 solid or class 2 stranded copper conductor according to BS EN 60228
    SeparatorMica/glass fire barrier tape
    InsulationLSZH (Low Smoke Zero Halogen) or XLPE
    Protective ConductorTinned copper, full size CPC
    BeddingLSZH (Low Smoke Zero Halogen)
    ScreenAL/PET (Aluminum/Polyester Tape)
    ArmourSWA (Steel Wire Armor), STA (Steel Tape Armor)
    SheathLSZH (Low Smoke Zero Halogen) or HOFR (Heat and Oil Resistant and Flame Retardant) to BS7655 or Heat resistant XLPE
    Sheath ColorRed, white, black
    Operating Temperature-25°C to +90°C
