    Armour PVC Sheathed Four Wire Electrical Cable / U1000 RVFV Cable Copper Conductor

    Ask Lasest Price
    Brand Name : SUNWIN
    Model Number : PVC insulated copper wire
    Supply Ability : 10000 Meter/Meters per Day
    Price : Negotiation
    Payment Terms : L/C, T/T
    Delivery Time : 30 working days after receive the buyer's advance payment
    • Product Details
    • Company Profile

    Armour PVC Sheathed Four Wire Electrical Cable / U1000 RVFV Cable Copper Conductor

    Armour PVC Sheathed Four Wire Electrical Cable / U1000 RVFV Cable Copper Conductor

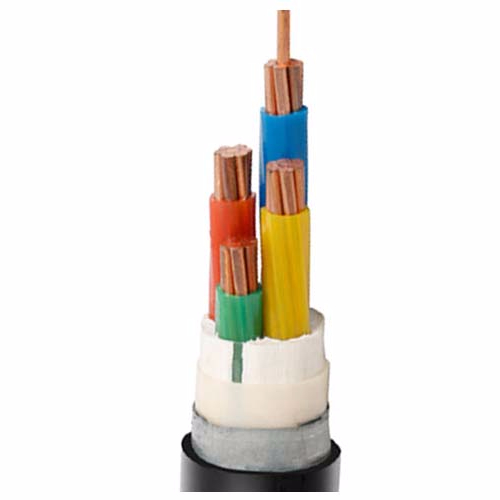

    Four Wire Electrical Cable structure


    - Stranded bare copper conductor according to IEC 60228


    - Core insulation of XLPE (cross-linked polyethylene)


    - Color coded cores according to HD 308.S2


    - PVC inner sheath


    - Armouring of steel tape( STA)


    - Outer black sheath, PVC self-extinguishing and flame retardant,


    test method IEC 60332-1 and BS 4066 PT1


    Four Wire Electrical Cable Technical data


    - Power and control cable according to BS 5467, IEC 60502


    - Temperature at conductor max. +90 °C


    - Temperature during installation from 0 °C to +70 °C


    - Nominal voltage U o /U 0,6/1 kV


    - Test voltage a.c. 3.5 kV


    - Minimum bending radius 12x cable diameter


    Four Wire Electrical Cable Application


    These power and control armoured cables are designed for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards or subscriber networks, where mechanical damages to the cable may occur.


    Note


    Other cable types according to BS (British Standard) available on request Conforms to RoHS.


    Detail Infomation
    Name:Four Wire Electrical CableArmour:Yes
    Application:ConstructionConductor Material:Copper Conductor
    Jacket:PVCPort:Guangzhou

    Armour PVC Sheathed Four Wire Electrical Cable / U1000 RVFV Cable Copper ConductorArmour PVC Sheathed Four Wire Electrical Cable / U1000 RVFV Cable Copper Conductor
